| Technical Specifications |
| Flow rate m3/h |
Discharge – 380 m3/h Suction – 215 m3/h |
| Speed rpm |
Pressure – 2.110 rpm Suction – 2.520 rpm |
| Current — Frequency |
0.17 (A) – Frequency 50 Hz |
| Sound Level |
49.6 Lp dB(A) |
| Motor Power – Voltage |
35 W 230 V Single Phase |
| Product Advantages |
- Vortice Vario series fans are IMQ SAFETY, IMQ PERFORMANCE, CE and EAC certified.
- Two-Way – Automatic Shutter – Glass and Type Axial Fans
- 3 different sizes and air flow rates
- 30,000 hours mechanical working life
- Model designed for Glass or Wall mounted installation
- Double wool (Exhaust and Fresh Air)
- Automatic Blinds; When the device is turned off, it prevents the entry of cold air and bad odors. The shutter can be left open when desired and provides natural ventilation.
- Material: UV-resistant ABS plastic (prevents aging caused by sunlight exposure)
- Nominal diameters 150 – 230 – 300 mm.
- High performance air flow rate 380m³/h – 700m³/h – 1650m³/h
- The motor is protected against thermal overload, the motor has a ball bearing bearing, the blades are combined with a screw type thermoplastic propeller.
- IMQ security and IMQ performance certifications
- Optional 5-stage functional speed switch
|
| Usage areas |
- Suitable for residential, commercial and industrial applications: kitchens, bathrooms, offices, laboratories, factories, shops, laundries, Workshops, Restaurants, Cafe bars, theaters and Cinema Halls, etc.
- It is used for ventilation of boiler rooms and indoor car parks within suspended ceilings.
- It provides the perfect solution for ventilation of areas such as office ventilation, restaurant, cafeteria, school, nursery, hospital.
|
Vortice Vario 150/6” – 380 m3/h (DOUBLE DIRECTIONAL – WITH VALVE)

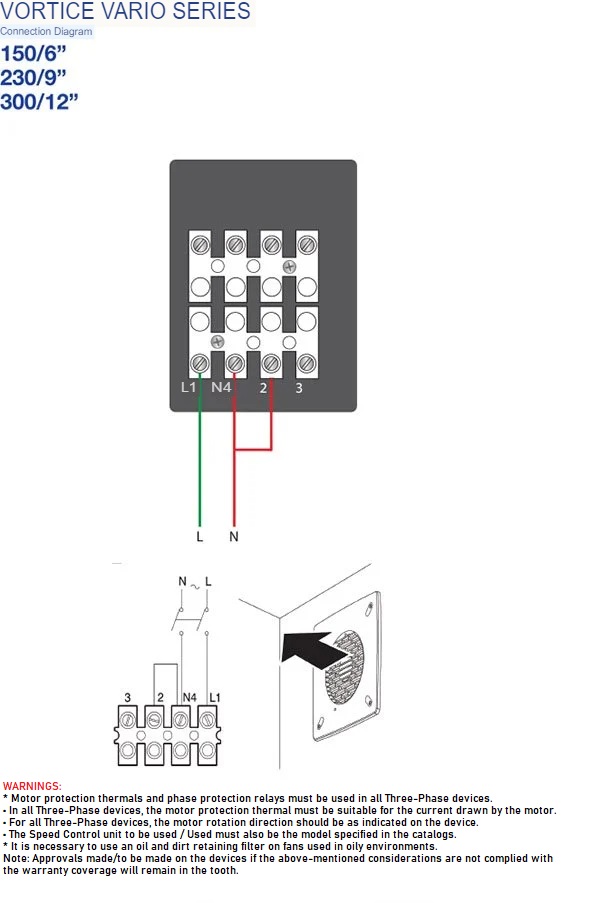

CR5N SPEED SWITCH MUST BE USED IN THESE PRODUCTS.
cr5n bi-directional speed switch – priced separately
IP 55 Class protected, Surface mounted, Fuse protected, 5-stage speed adjustment, on/off switch, Bi-directional
| MODEL |
FREQUENCY (Hz) |
VOLTAGE (V) |
ROPE |
MAXIMUM POWER (W) |
MAXIMUM CURRENT (A) |
OPERATING TEMPERATURE RANGE |
| CR5 |
50 |
220-240 |
IP20 |
one hundred |
1,2 |
0-50°C |
