WOODEN COMPOSITE TECHNICAL SPECIFICATIONS

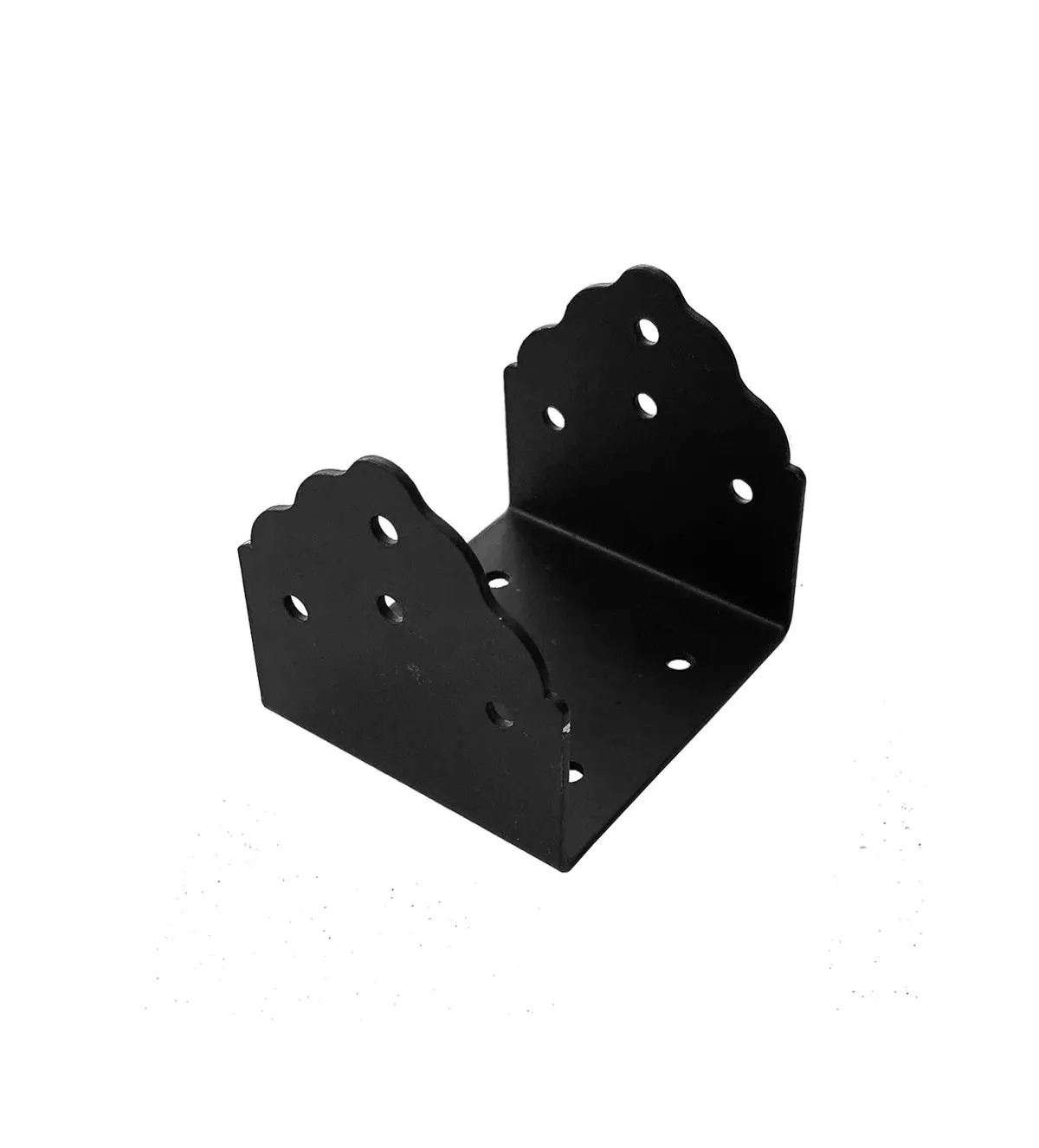

METAL U CONNECTION 60 MEMBER
Material: Galvanized metal or Chrome
Finish Metal U Connection 60 Element
Product Dimensions: Width: 60mm
Height: 56mm
Length: 56mm
Appearance:
 Metal U Connection 60 Element; Should be produced from galvanized 1.5mm thick metal or chrome material
.
 Metal U Connection 60 Element; Width; 60mm, Height; 56mm and Length; 56mm.
 Metal U Connection 60 Element; Hole diameter is 5mm, internal dimension is 60mm x 56mm, it should be used in joining rafters 60 and beams
.
 Metal U Connection 60 Element; Provides ease of installation on all flat areas with its 60mm internal volume by using 4 screws on the sides and 5 screws on the bottom
.
