Description

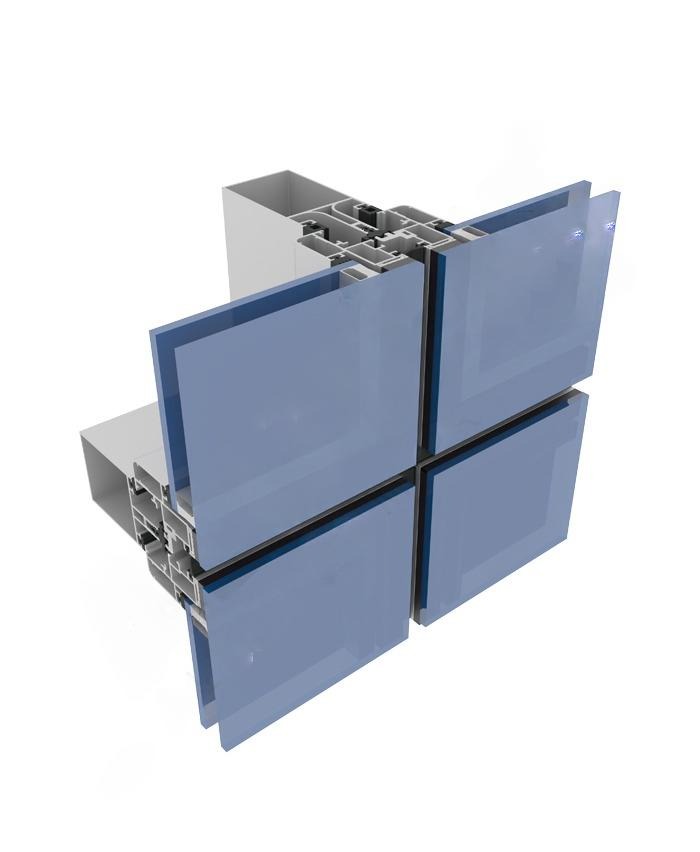

The T50 Silicone Facade System, which is a structural system, is an architecturally very aesthetic exterior facade system where only the glass can be seen from the outside. In this system, the glass is attached to the exterior using special cassette profiles. Thus, when the facade is viewed from the outside, the aluminum profiles used in the system are not visible. On the system, any desired glass panel can be turned into a hidden wing, so that it is not noticeable from the outside which panel is opened.
Profile width: 50 mm Upright profile Depth: min. 80mm – max. 120 mm.
Horizontal profile Depth: min. 30mm – max. 127 mm.
Horizontal profile Depth: min. 30mm – max. 127 mm.
Profile Wall Thickness: 1.5 / 1.6 / 1.8 / 2 / 2.1 / 2.3 / 2.5 mm.
Glass Thickness: 24 mm. – 40 mm.
Glass Thickness: 24 mm. – 40 mm.
Concealed opening wing width: max.- 1500mm.
Concealed opening wing height: max.- 2000mm.
Concealed opening wing height: max.- 2000mm.
