IT IS OVEN PAINTED – FREQUENT AND SPACIOUS FLASH OPTIONS – FAN DIRECTION PREFERENCE – SUITABLE FOR OILY ENVIRONMENTS – DOMESTIC PRODUCTION
| Technical Specifications |
| Transfer |
1,400 rpm |
| Pressure |
120mm/SS |
| Flow |
13,000 m3/h |
| Voltage |
380V |
| Motor power |
7.50kw |
| Product Advantages |
- These are our fans that can deliver high flow rates at nominal static pressures.
- Body: Made of electrostatic powder coated DKP sheet metal.
- Low pressure conical suction radial fan series
- Radial fan; It is made of DKP sheet metal with its forward-curved wing structure.

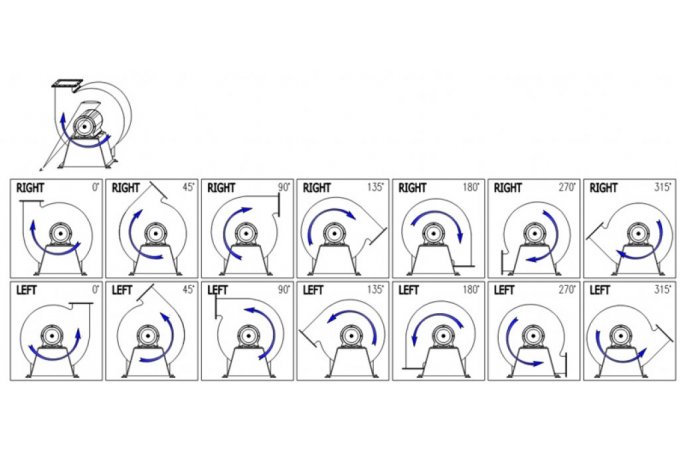

- The case assembly, made with a screwing system, can be easily turned to the desired shooting position.
|
| MODEL |
A. |
B. |
C. |
D |
TO |
F |
| EU R-9 – 7.50 KW-10.00HP |
945mm |
1000mm |
350mm |
420mm |
480mm |
350mm |
