IT IS OVEN PAINTED – FREQUENT AND SPACIOUS FLASH OPTIONS – FAN DIRECTION PREFERENCE – SUITABLE FOR OILY ENVIRONMENTS – DOMESTIC PRODUCTION
| Technical Specifications |
| Transfer |
1,400 rpm |
| Pressure |
40mm/SS |
| Flow |
2,000 m3/h |
| Voltage |
380V-230V |
| Motor power |
0.37 Kw |
| Product Advantages |

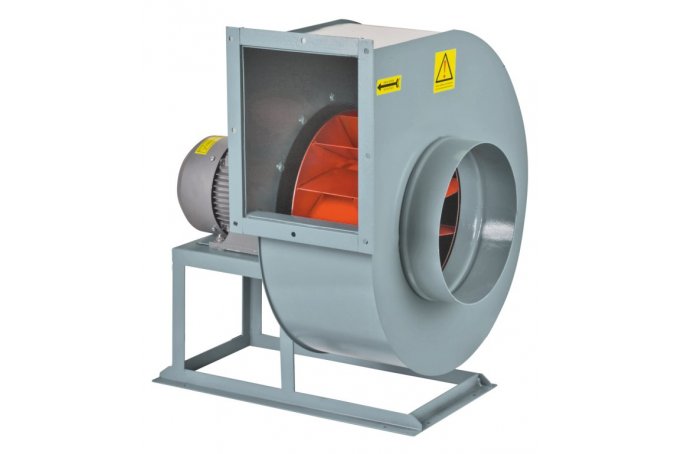

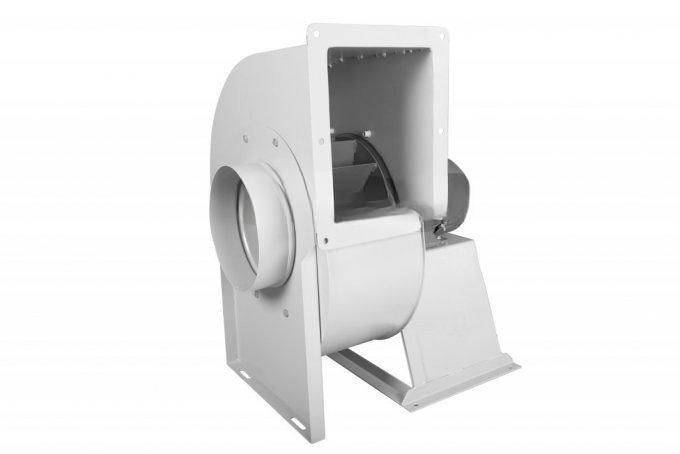

- These are our fans that can deliver high flow rates at nominal static pressures.
- Body: made of electrostatic powder coated DKP sheet metal.
- Radial Fan: Made of DKP sheet metal with forward-curved blade structure.

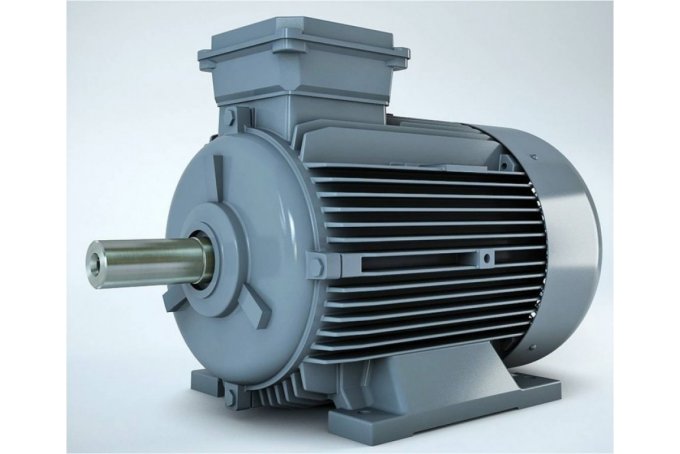

- Directly coupled motor (single-phase-three-phase) can be used.

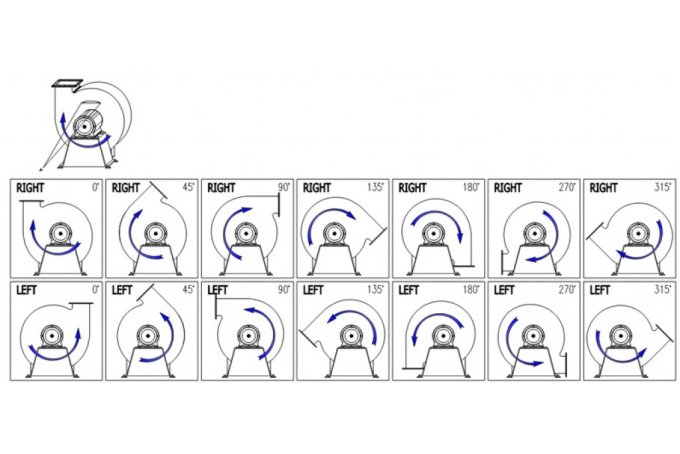

- The case assembly, made with a screwing system, can be easily turned to the desired shooting position.
- These fans fall into the forward-leaning blade fan group. Forward-biased (FC) fans have their blades inclined towards the direction of rotation of the fan. These are fans that can deliver large amounts of air at low static pressures. On the other hand, these fans operate at low efficiency values.
|
| MODEL |
A. |
B. |
C. |
D |
TO |
F |
| EU R-1 – 0.37 KW- 0.50HP |
445mm |
450mm |
160mm |
200mm |
200mm |
160mm |
