s&p hcm-n 150 glass / wall type aspirator – 220 m3/h

SKU: Tekramnasnaf: HCM-150

$0,00

Description

HCM-N series axial fans are designed to exhaust air directly to the outside environment. Fans are produced from plastic by injection molding method. All fans have automatic air moving shutters.

All motors are Class B insulated and 230V-50Hz single phase. Motors are IPX4 class.

Technical Specifications
Model  HCM-150
Transfer  1,900 rpm
Sound  40 (dB(A))
Flow  400 m3/h
Voltage  230V
Motor power  25W
Weight  0.9kg
Product Advantages

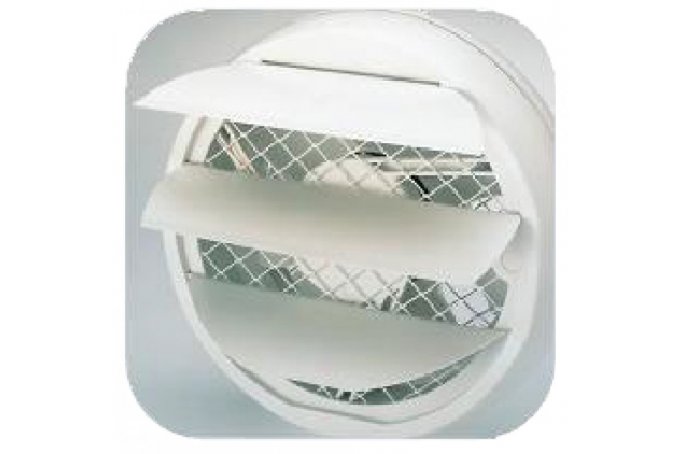

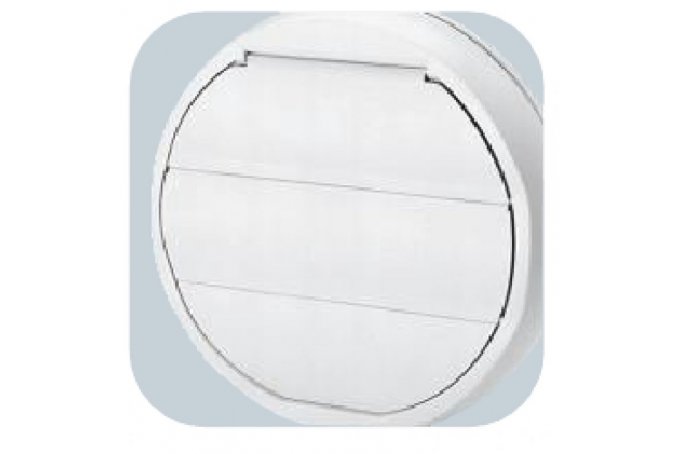

  • HCM-N series axial fans, which can be mounted on the wall or glass, have backflow shutters.
  • It is designed to discharge air directly to the outside environment.
  • It is equipped with a class B, low power consumption, overload protected motor. It has Class II insulation and IPX4 protection.

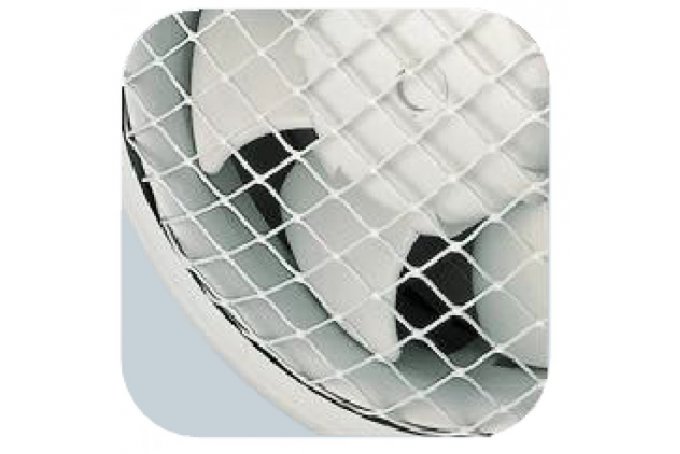

  • There are guards at the inlet and outlet of the fan to prevent any foreign objects from entering.

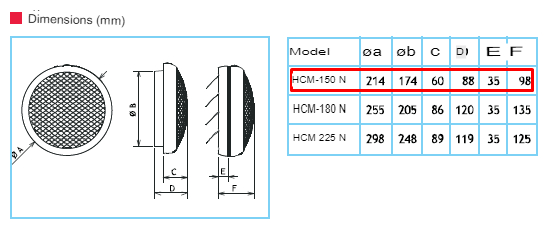

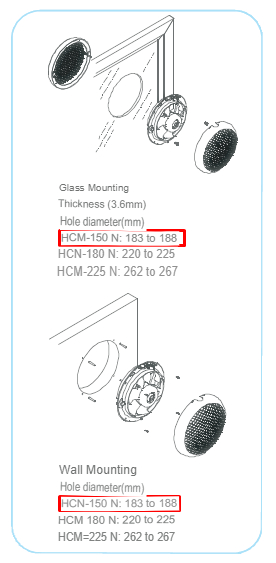

 INSTALLATION DIMENSIONS
