Description

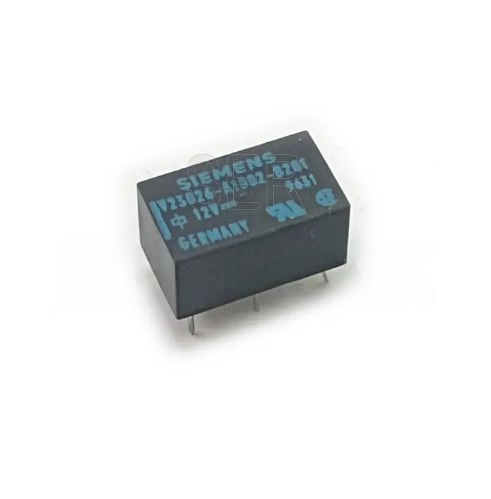

Siemens – V23026-A1002-B201 12V 1A Mini Relay
|
Manufacturer
|
Siemens |
|
Type of relay
|
Electromagnetic |
|
Contacts configuration
|
SPDT |
|
Rated coil voltage
|
12VDC |
|
Contact current max.
|
1 A |
|
AC contacts rating @R (at resistive load) at resistive load
|
0.46A / 150V AC |
|
DC contacts rating @R (at resistive load) at resistive load
|
1A / 30V DC |
|
Switched voltage
|
max. 125V DC, max. 150V AC |
|
Relay option
|
miniature |
|
Mounting
|
THT |
|
Coil resistance
|
2.25kΩ |
|
Coil voltage min.
|
9VDC |
|
Body dimensions
|
13×7.6×6.9mm |
|
Coil power consumption
|
34mw |
|
Relay series
|
V23026 |
|
Terminal pitch
|
5.08mm |
|
Design
|
Single coil |
