Description
General Specifications
- Raw material: PVC UL94, V0 M1
- Compression resistance: 320 Nt/5cm
- Impact resistance: 2 Joule
- Operating temperature: -25 to +65 C0
- Colour: White RAL 9010
- IP Ingress Protection: IP67
Features
- UV resistant
- Easy install, paintable, non-flammable
- Economic and adaptable
- Resistant to acids, oils and greases
- Non-conductive
- Nonflammable
- Corrosion resistant
- Lead-Free environment friendly PVC material
- Socket ending available
- Different colors available
- Lenght may vary
- Standards EN 61386-21

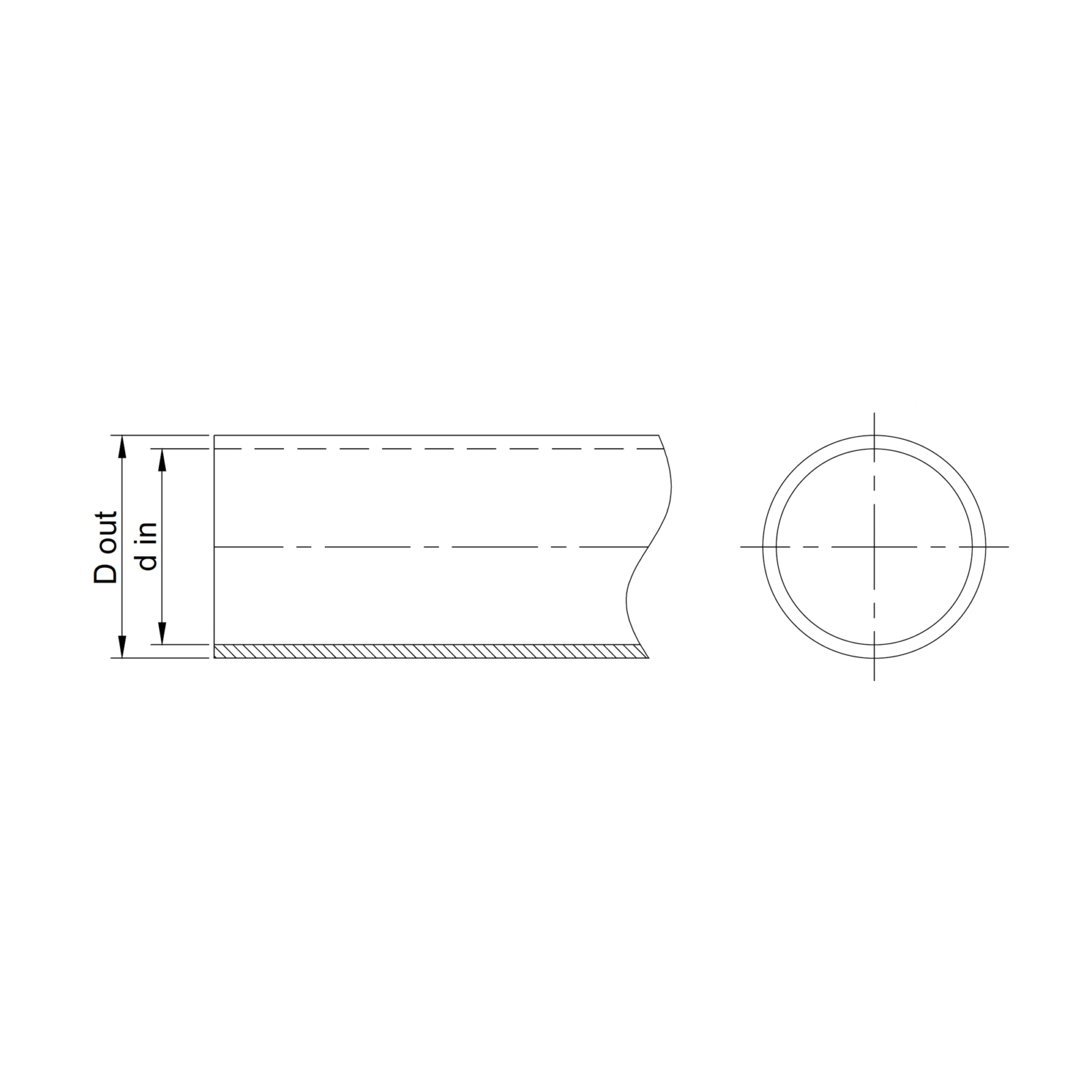

| Size | Code | D (mm) | d (mm) | Quantity/Pack (m) | Volume (m3) | Weight (kg) |
|---|---|---|---|---|---|---|
| Ø16 | RP1016014 | 16 | 13,7 | 120 | 0,026 | 14,5 |
| Ø20 | RP1020145 | 20 | 17,6 | 75 | 0,026 | 12,1 |
| Ø25 | RP1025017 | 25 | 22,2 | 75 | 0,052 | 17,8 |
| Ø32 | RP1032002 | 32 | 28,7 | 60 | 0,052 | 21,4 |
| Ø40 | RP1040021 | 40 | 35,8 | 45 | 0,066 | 21,3 |
| Ø50 | RP1050215 | 50 | 45,7 | 30 | 0,066 | 18,3 |
