Description
General Specifications
- Raw material: PVC UL94, V0 M1
- Compression resistance: 320 Nt/5cm
- Impact resistance: 2 Joule
- Operating temperature: -25 to +65 C0
- Colour: White RAL 9010
- IP Ingress Protection: IP67
Features
- UV resistant
- Easy install, paintable, non-flammable
- Economic and adaptable
- Resistant to acids, oils and greases
- Non-conductive
- Nonflammable
- Corrosion resistant
- Lead-Free environment friendly PVC material
- Socket ending available
- Different colors available
- Lenght may vary
- Standards EN 61386-21

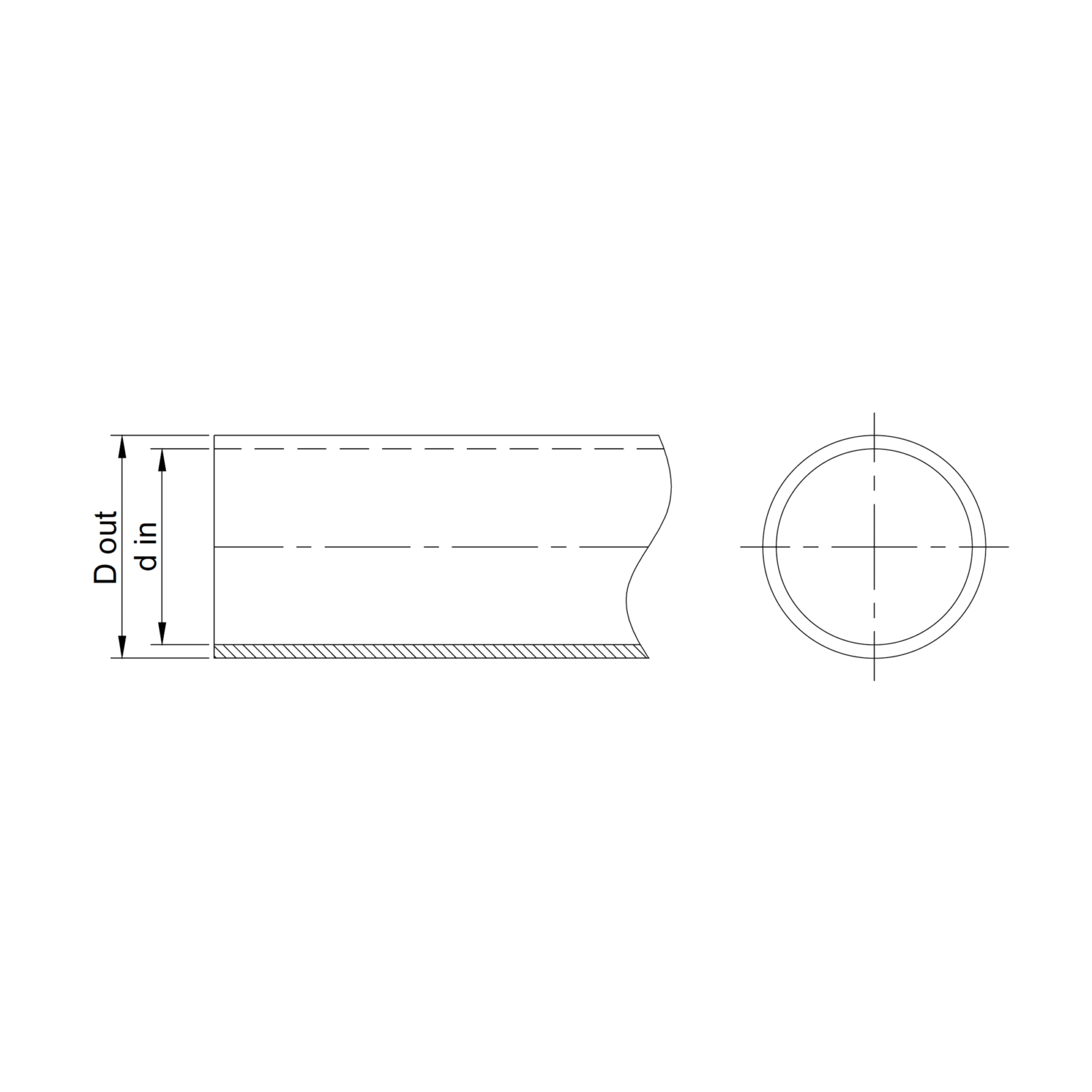

| Size | Code | D (mm) | d (mm) | Quantity/Pack (m) | Volume (m3) | Weight (kg) |
|---|---|---|---|---|---|---|
| Ø16 | RP1016002 | 16 | 12 | 120 | 0,026 | 19,9 |
| Ø20 | RP1020021 | 20 | 15,8 | 75 | 0,026 | 16,6 |
| Ø25 | RP1025022 | 25 | 20,8 | 75 | 0,052 | 22,3 |
| Ø32 | RP1032255 | 32 | 26,9 | 60 | 0,052 | 26,8 |
| Ø40 | RP1040275 | 40 | 34,5 | 45 | 0,066 | 27,4 |
| Ø50 | RP1050003 | 50 | 44 | 30 | 0,066 | 25,1 |
| Ø75 | RP1075032 | 75 | 68,6 | 15 | 0,066 | 20,5 |
| Ø100 | RP1010032 | 110 | 106 | – | – | – |
