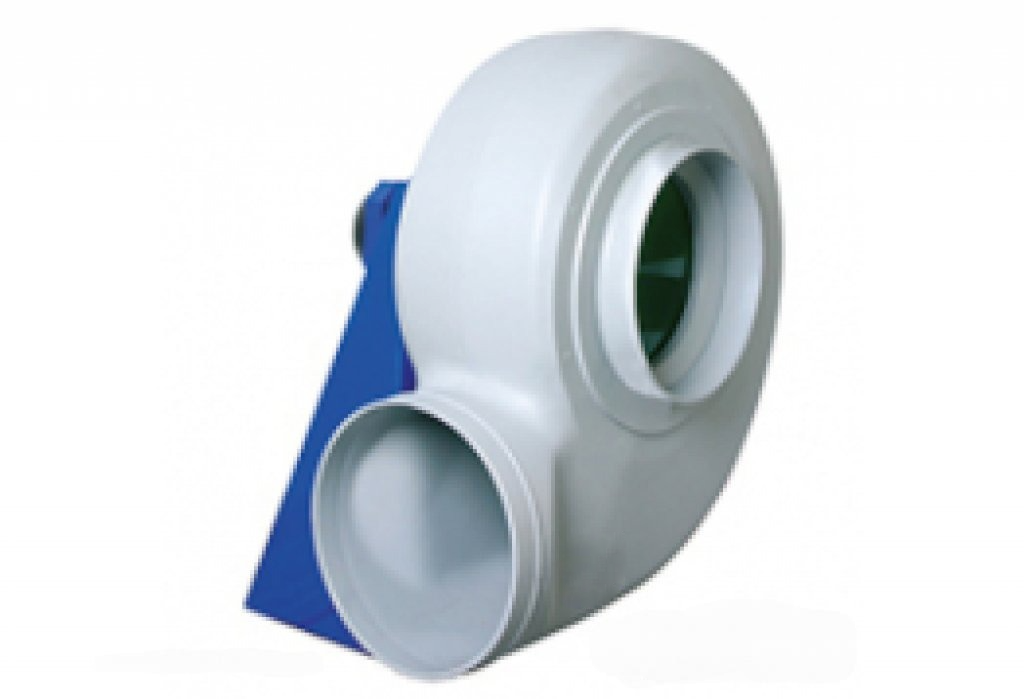

Plastic Snail Fan Radial Acid Fan ARFP-202 MODEL

Venplast ARFP model fans  are made of anti-corrosive PE and PP (polyethylene) – (Polypropylene) materials, and with their ideal geometry and 3-dimensional airfoil wing profiles, they are much more efficient and have higher performance than sheet metal fans.

The fact that the body and rotor are plastic-based prevents spark formation in possible metal impacts. Their corrosion resistance is at the highest level and they do not oxidize, melt or rot over time. It is a highly efficient steam discharge aspirator for use in laboratories, fume hoods, chemically acidic environments, air suctions containing high humidity and steam, purification facilities, galvanizing workshops, laboratory fume hoods, and environments with corrosive gases. Its body can rotate 360′ and can be mounted in any desired position.

It is a single suction centrifugal type, its engine is directly coupled and connected with a B5 flange.

It can be easily assembled on its steel chassis.

Some models can be supplied with a 230 V single-phase motor upon request.

Venplast Italian P series high safety corrosive gas and vapor discharge fans, (  PP acid fan  )

• Body material: PE, PP (polyethylene, polypropylene)
• Impeller material: PP (polypropylene)
• Mounting location: Duct type
• Connection type: Circular
• Mounting type: Between channels

• Engine: Directly coupled
• Air flow: Radial (centrifugal)
• Protection class: IP:55
• Heat resistance: +100 C’ max.
• Place of production: ITALY

• ARFP Series Polypropylene snail acid fan

  PP snail type acid and chemical vapor discharge fans

  Production Features:

  • PE plastic body.
  • Self-cleaning backward curved impeller made of PP plastic.
  • Engine support in rolled sheet steel with polyester powder coating.
  • Stainless steel nuts and bolts.
  • Standard asynchronous motor, IP-55, class F insulation. Standard voltages 230/400V 50Hz.
  • Standard direction: LG270.

  Applications:

  • Corrosive air transport.
  • Chemical and petrochemical industry.
  • Laboratories and gas cabinets.
  • Maximum temperature of the transported air: 70ºC if it is fresh air, otherwise it depends on the gas. (See table in documentation.)

  Included in Request:

  • Single phase motors (up to 1.5kW).
  • 60Hz fans and special voltage fans.
  • 2 speed engine.
  • Stainless steel engine support.
  • Case made of PP plastic.
