Description
| Technical Specifications | |
| Filter Unit Combination | WASHABLE METAL PRE-FILTER, G3 FIBER+CARBON FILTER, H13 HEPA FILTER |
| Filter Sensitivity | 99.9% |
| Suction Capacity – Air Flow Rate | 3.000 m3/h —BODY STRUCTURE: STEEL, ELECTROSTATIC OVEN PAINTED |
| Standard Acrobat Arm Length | 3.0 meters |
| Motor power | 1.50 kW (220 V) 2800 rpm |
| Weight | 120 Kg – illuminated filter full warning |
| Dimensions (LxDxH) | (Width x Length x Height) 700x790x1020 mm (Excluding Acrobat Arm) |

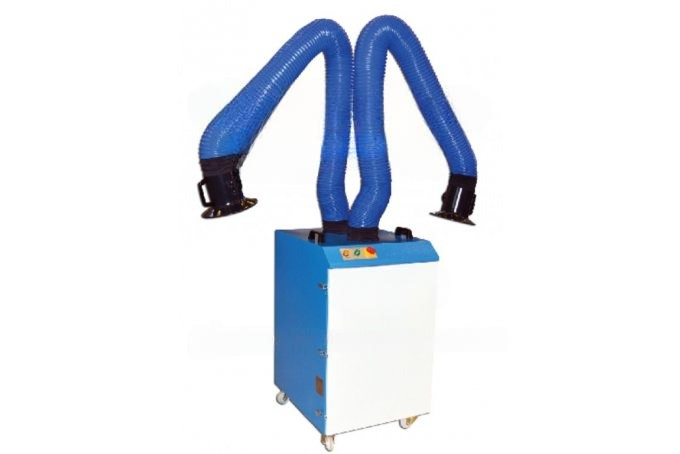

- The body is designed for welding fume absorption and has high suction and sealing properties.
- Suction arm can rotate 360°

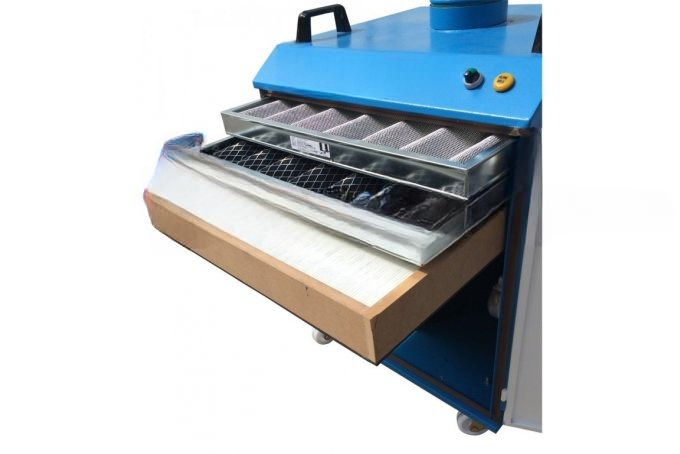

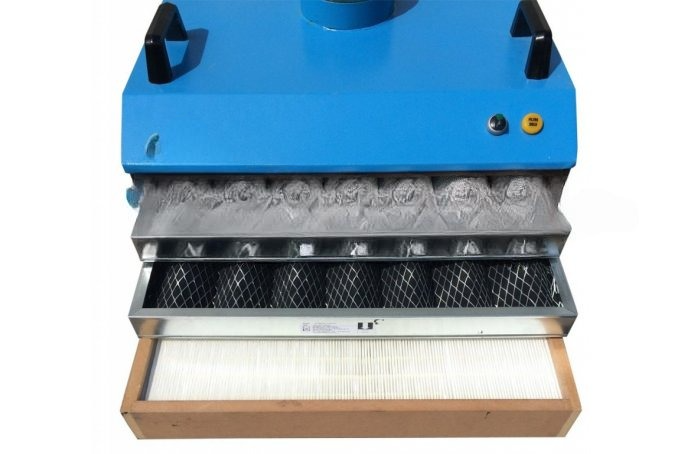

- A special aluminum filter that retains particles and welding spatter prevents thick particles and hot burrs from reaching the advanced filters.
- The second stage filter is carbon impregnated EU5 class fiber and retains odor and micron level particles.
- The third stage filter is H15 HEPA class and retains 99% of dust and smoke.
- Illuminated filter full warning
BLACK ABSORBENT POLYURETHANE HOSE SPECIFICATIONS
- It can be used as an absorber and transmitter.
- Rigid PVC Spirals provide maximum flexibility and breakage resistance.
- -20°C to +65°C at Steady State
- -5°C to +43°C in motion
Areas of Use
It is used for vacuum suction and evacuation of dust, air and smoke in industry, mines, shipyards, wood and furniture industries.
