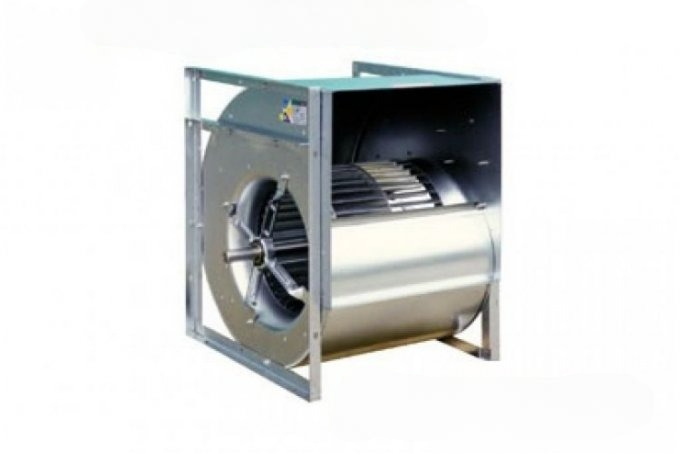

Indoor Fan Double Suction Radial Fan (10X10) 5.500 m3/h
Indoor Fan Double Suction Radial Fan (10X10) 5.500 m3/h - Image 2
Indoor Fan Double Suction Radial Fan (10X10) 5.500 m3/h - Image 3

Indoor Fan Double Suction Radial Fan (10X10) 5.500 m3/h

SKU: Tekramnasnaf: FHB 10





$184,05

Description

Technical Specifications
Model  FHB-10X10
Air Outlet Diameter   330x290mm
Flow   5,500 m3/h
Weight Without Motor  9.30kg
Product Advantages
  • Made in Turkey
  • Material: body; It is made of galvanized sheet metal. The radial fan is made of galvanized sheet metal with a forward-curved blade structure. Beds; It is made of bearings that constantly renew themselves, and the bearing protectors are made of rubber.
  • Speed ​​Control: Achieved by Belt Pulley System.
  • The mounting feet allow the fan to be used in 4 different directions.
Usage areas
  • Cellular aspirators, central air conditioning units, workplaces, offices, cafeterias, restaurants, meeting rooms, supermarkets, etc.
  • Suitable for use in places where silence and comfort are needed



MEDICINE m3/h kg
FRV -HV SIKKANAT 7/7 3500 6.1
FRV -HV SIKKANAT 9/9 5000 8.2
FRV -HV SIKKANAT 10/10 6500 9.4
FRV -HV SIKKANAT 12/12 10000 15.5
FRV -HV SIKKANAT 15/15 18000 20.7
FRV -HV SIKKANAT 18/18 25000 40.5



MEDICINE A. B. C. D TO F I J. K L.  M.  N X   t    t1   W   D  H1 H2 H3 X1 X2 X3
FRV-HV SIKKANAT 7/7 321 333 207 190 225 330 375 236 264.5 287.5 44 154 22.5 6 6 30 20 195 167 142 152 93 144
FRV-HV SIKKANAT 9/9 390 400 261 218 300 390 435 296 325.5 350.5 44 217 22.5 6 6 30 20 225 208 182 202 114 184
FRV-HV SIKKANAT 10/10 435 455 290 250 339 445 500 333 361 386 57 197 28 8 7 50 25 258 238 205 161 146 200
FRV-HV SIKKANAT 12/12 498.5 535 336 292 409 520 580 398 428 453 65 229 28 8 7 50 25 304 270 243 223 139 257
FRV-HV SIKKANAT 15/15 597 620 402 341 497 610 650 476 505 531 60 264 28 8 7 60 25 349 324 279 260 214 301
FRV-HV SIKKANAT 18/18 687 753 477 411 605.5 732 754 559 591 614 71 313 28 8 7 65 25 424.5 375 342 282 281 330



MEDICINE A. B. C. D TO F g H I J. K L. M. N R. t t1 W X D UxS
FRV -HV SIKKANAT 15/15 569 609 404 342 497 531 539 36 675 471 495 520 75 264 4 8 7 64 33 30 11×16
FRV -HV SIKKANAT 18/18 684 739 477 415 608 641 654 36 790 557 583 607 87 314 6 10 8 70 38 30 11×16
