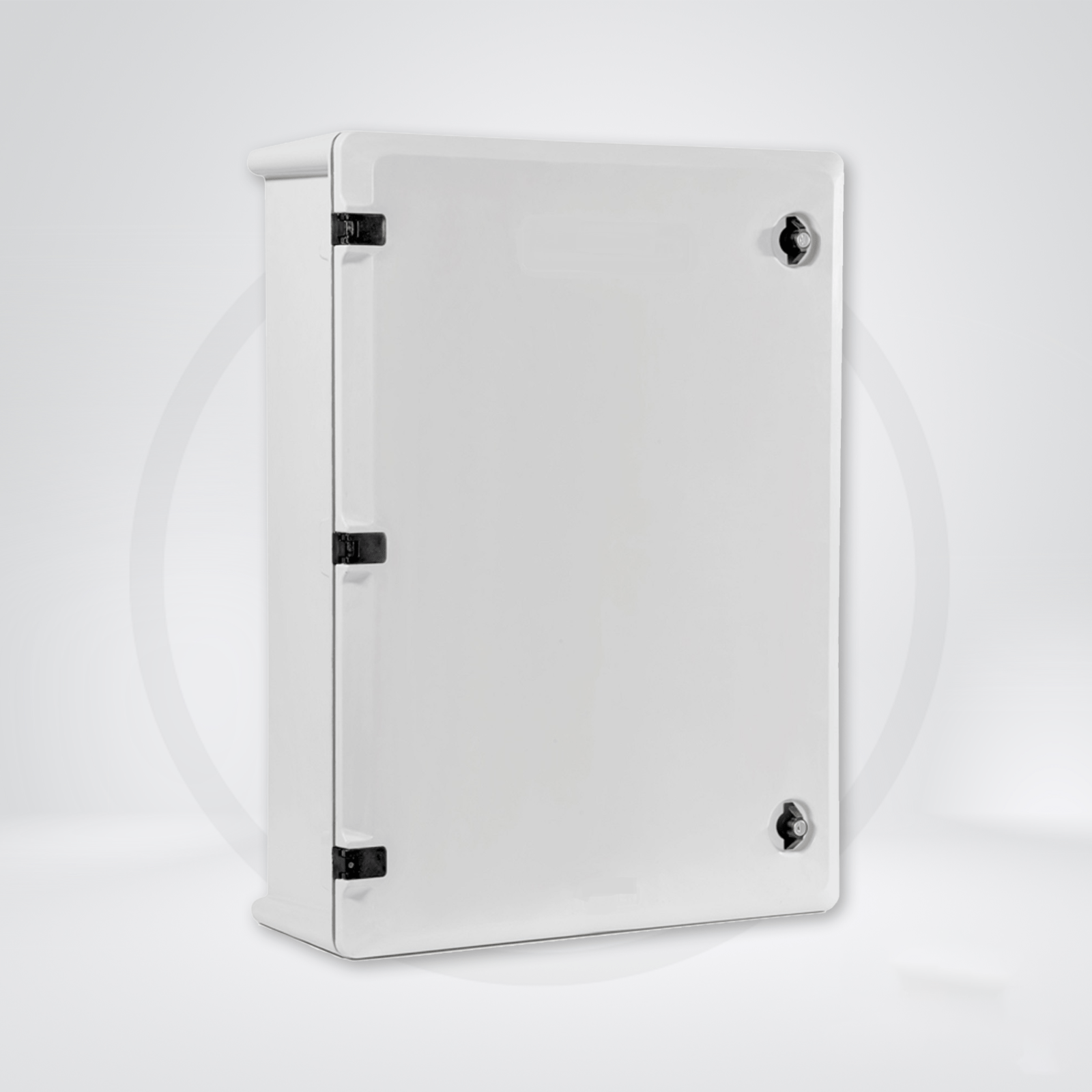

Description
General Specifications
- Raw Material: GRP (Glass Reinforced Polyester)
- Quality Standart: EN61439, EN60670-1
- Color: RAL 7035
- Operating Temperature: 40ºC / +70ºC
- Rated Voltage: Up to 690 V
- Maximum Current: Up to 800 A
- Door Opening Angle: 210º
- Protection Class: IP65
- IK Degree: Up to IK08
- Mounting Plate Material: Galvanised Steel
- Grounding Class: Class II
- Fire Resistance: V0,V2,B2,A1,A2,B1
- High resistance to corrosion.
- Humidity resistance.
Box Content
- Wall Hanging Clips (4 Pcs)
- M5x12 Phillips Head Screws (4 Pcs)
- Spanner (1 Pcs)
- Mounting Plate
Typical Applications
- Transformer Load Boards
- Compensation Boards
- Distribution Boards
- Network Generator
- Transfer Applications
- Automation Panels
- Control Panels 1 2 3
- Lighting Panels
- OSOS Panels
- Counter Panels
Physical Features
| Size | Hinge Qty | Lock Qty | Thickness (mm) | Mounting Plate | Product Weight (kg) | Product Volume (m3) |
|---|---|---|---|---|---|---|
| 19 x 29 x 12 | 2 | 1 | min 3-4 | 0,8 mm | 1,5 | 0,007 |
| 20 x 30 x 12 | 2 | 1 | min 3-4 | 0,8 mm | 2,4 | 0,007 |
| 21 x 32 x 13 | 2 | 1 | min 3-4 | 0,8 mm | 1,92 | 0,009 |
| 25 x 30 x 17 | 2 | 1 | min 3-4 | 0,8 mm | 2,98 | 0,013 |
| 22 x 33 x 17 | 2 | 1 | min 3-4 | 0,8 mm | 3,5 | 0,012 |
| 30 x 40 x 17 | 2 | 2 | min 3-4 | 0,8 mm | 4,69 | 0,02 |
| 35 x 50 x 17 | 2 | 2 | min 3-4 | 0,8 mm | 6,35 | 0,03 |
| 40 x 60 x 14 | 2 | 2 | min 3-4 | 1 mm | 5,5 | 0,034 |
| 40 x 60 x 20 | 2 | 2 | min 3-4 | 1 mm | 8,96 | 0,048 |
| 50 x 70 x 14 | 3 | 2 | min 4-5 | 1 mm | 11,35 | 0,049 |
| 50 x 70 x 20 | 3 | 2 | min 4-5 | 1 mm | 11,8 | 0,07 |
| 60 x 80 x 22 | 3 | 2 | min 4-5 | 1 mm | 16,85 | 0,106 |
| 70 x 100 x 35 | 3 | 2 | min 4-5 | 1 mm | 22 | 0,245 |
| 90 x 90 x 140 | 3 | 2 | min 4-5 | 1 mm | 26 | 0,113 |
Size Chart
| Size | Ref. Code (V2) | W (mm) | H (mm) | L (mm) | Qty / Pack | Box Volume | Box Weight (kg) |
|---|---|---|---|---|---|---|---|
| 19 x 29 x 12 | EB6192912 | 120 | 290 | 190 | 8 | 0,053 | 28 |
| 20 x 30 x 12 | EB6203012 | 120 | 300 | 200 | 8 | 0,058 | 28 |
| 21 x 32 x 13 | EB6213213 | 130 | 320 | 210 | 8 | 0,07 | 41 |
| 25 x 30 x 17 | EB6253017 | 170 | 300 | 250 | 6 | 0,077 | 30 |
| 22 x 33 x 17 | EB6223317 | 220 | 330 | 170 | 6 | 0,074 | 30 |
| 30 x 40 x 17 | EB6304017 | 170 | 400 | 300 | 4 | 0,082 | 27 |
| 35 x 50 x 17 | EB6355017 | 170 | 500 | 350 | 2 | 0,06 | 17 |
| 40 x 60 x 14 | EB6406014 | 140 | 600 | 400 | 1 | 0,034 | 13 |
| 40 x 60 x 20 | EB6406020 | 200 | 600 | 400 | 1 | 0,048 | 13 |
| 50 x 70 x 14 | EB6507014 | 140 | 700 | 500 | 2 | 0,098 | 18 |
| 50 x 70 x 20 | EB6507020 | 200 | 700 | 500 | 1 | 0,07 | 18 |
| 60 x 80 x 22 | EB6608022 | 220 | 800 | 600 | 1 | 0,106 | 38 |
| 70 x 100 x 35 | EB6500035 | 350 | 1000 | 700 | 1 | 0,245 | 38 |
| 90 x 90 x 140 | EB6909014 | 140 | 900 | 900 | 1 | 0,113 | 38 |
