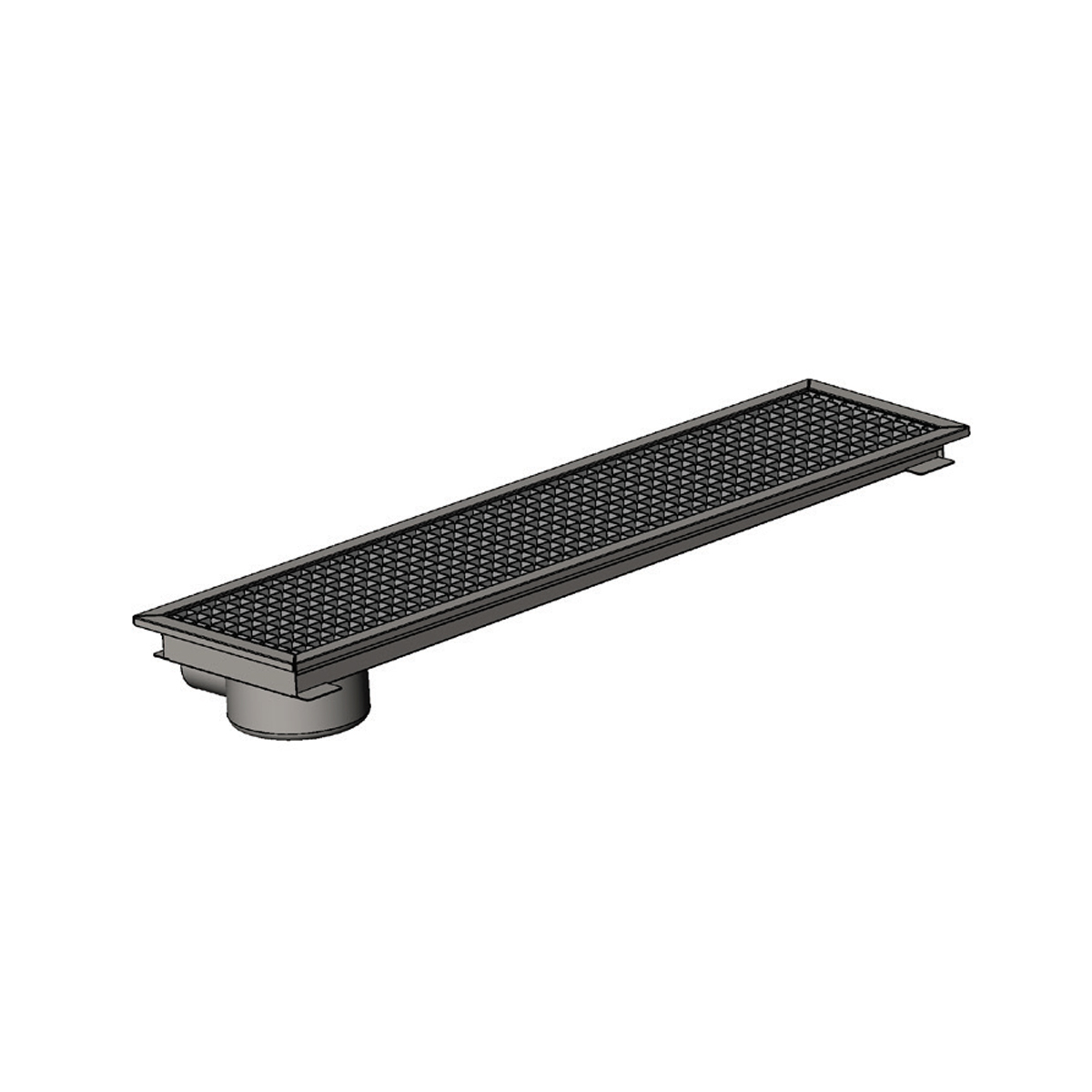

Floor Grid with Pan, Side Flush - Bottom Outlet Q70 Cast Iron 490x290Neutral

Floor Grid with Pan, Side Flush – Bottom Outlet Q70 Cast Iron 490x290Neutral

SKU: relikayritzo:7961.04929.7Y1
  • Made of stainless steel sheet (AISI 18/8 Cr-Ni)
  • The floor grate pan channel sheet is inclined towards the section where the siphon is located.
  • The pan channel sheet is in one piece and has a 25 mm frame.
  • All folding and joints are welded with argon welding method and are leak-proof.
  • There are connection ear plates to be anchored to the concrete from the corners of the floor drain channel plate.
  • Removable 25×25 mm spaced industrial type honeycomb grid
  • Ø180
  • 80 mm cylindrical press with side flush
  • Removable strainer siphon cover suitable for the accumulation of solid particles
  • The siphon is designed to prevent odors from coming from the installation.
  • It has a bottom outlet and is made with an outlet diameter suitable for Ø70 mm cast iron pipe.



Description

Product code 7961.04929.7Y1
Name of the product Floor Grid
Product Type Neutral

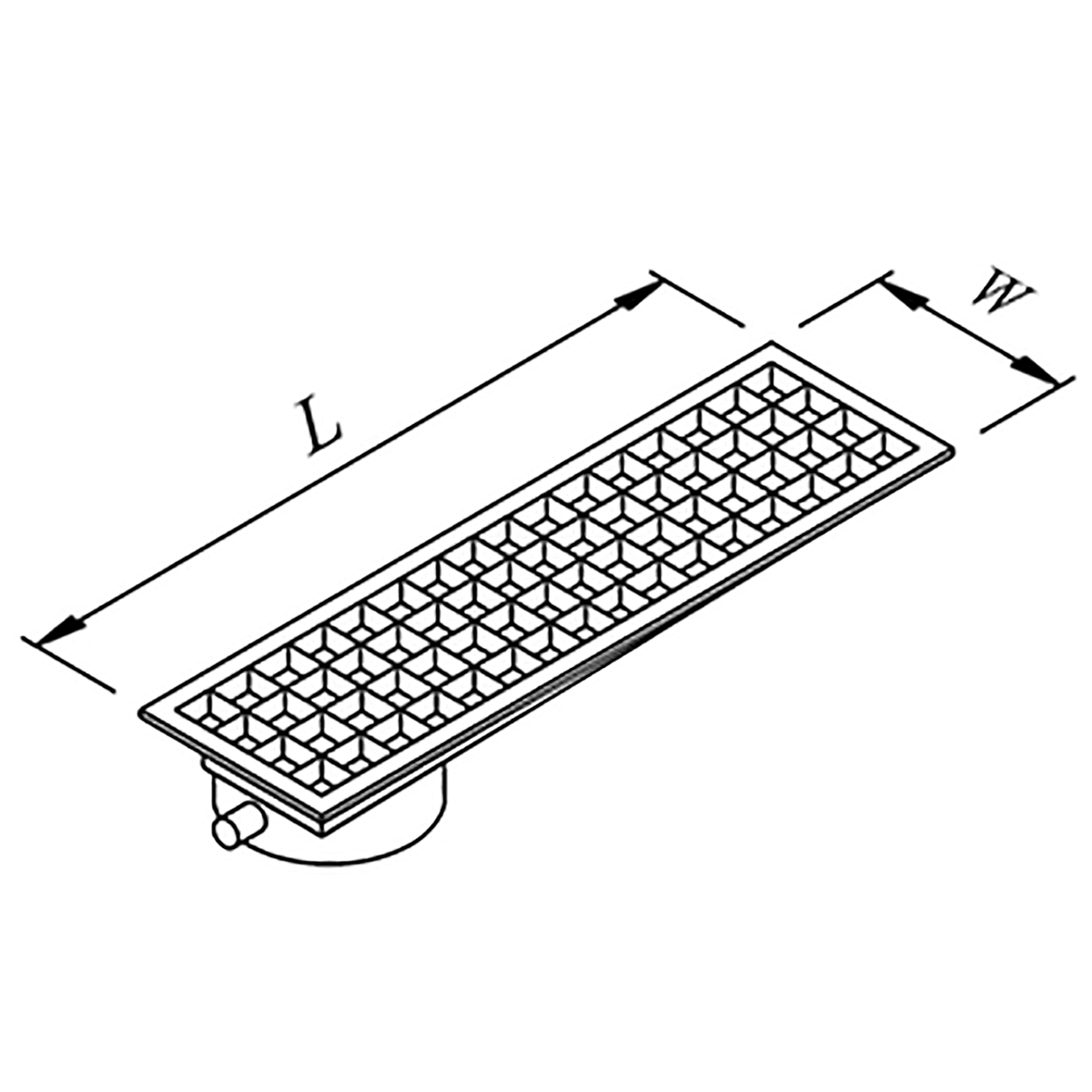

Width (mm) 490.0
Length (mm) 290.0
Height (mm) 145.0
Volume 0.03
Package Width (mm) 340.0
Package Size (mm) 540.0
Package Height (mm) 260.0
Package Volume 0.05
Number of Products in the Package 1.0
Tank Heater Power
