WOODEN COMPOSITE TECHNICAL SPECIFICATION

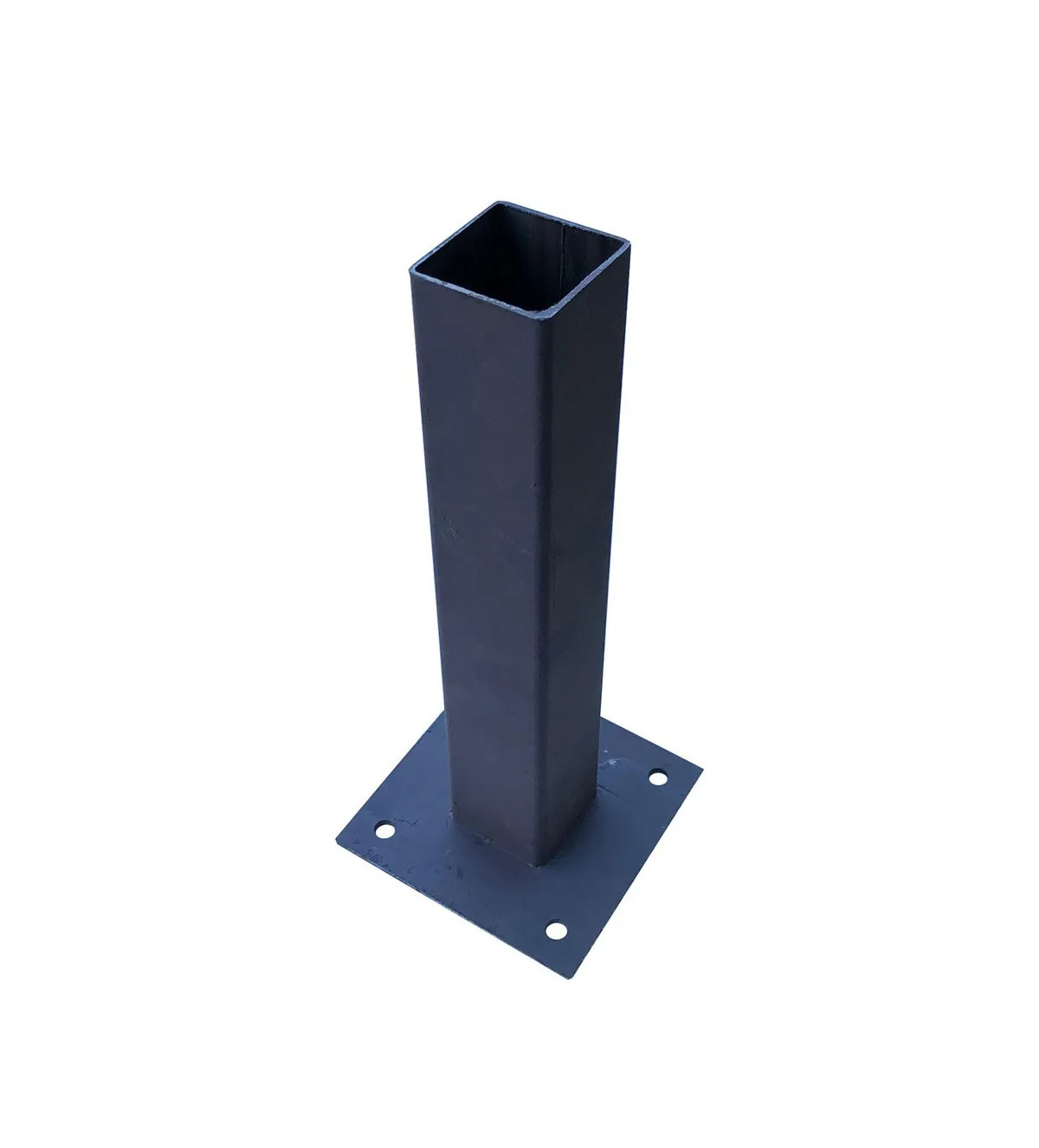

FLANGED POLE CONNECTION MEMBER 35
Material: Galvanized metal
Product: Metal Pole Connection Element
Product Dimensions: PROFILE Width: 60 mm FLANGE Width: 147 mm
Height: 60 mm Thickness: 3 mm
Length: 350 mm Length: 147 mm
Appearance:

 Metal Pole Connection Element; It should be produced from galvanized 2 mm thick metal or chrome.
 Metal Pole Connection Element Profile Width; 60 mm, height; 60 mm and length; 350 mm.
 Metal Pole Connection Element Flange Width; 147 mm, length; 147 mm and thickness; 3 mm.
 Metal Pole Connection Element; The holes (diameter 10 mm) located in the corners
are located in accordance with the corner holes of the 150 mm Pole and are used to connect the ground and the pole.
 Metal Pole Connection Element; It provides ease of installation on all flat areas with the help of 4 steel dowels in 4 pieces of 10 mm diameter holes located on the sides
