| Technical Specifications |
| Model |
DRS-120-60 |
| Air Outlet Diameter |
66X78mm |
| Transfer |
2,600 rpm |
| Flow |
380 m3/h |
| Voltage |
230V |
| Motor power |
90W |
| Frequency |
50Hz |
| Product Advantages |
- DRS centrifugal fans have low noise level and high pressure features.
- It saves space thanks to its compact structure.
- Its body is made of electrostatic powder coated sheet metal.

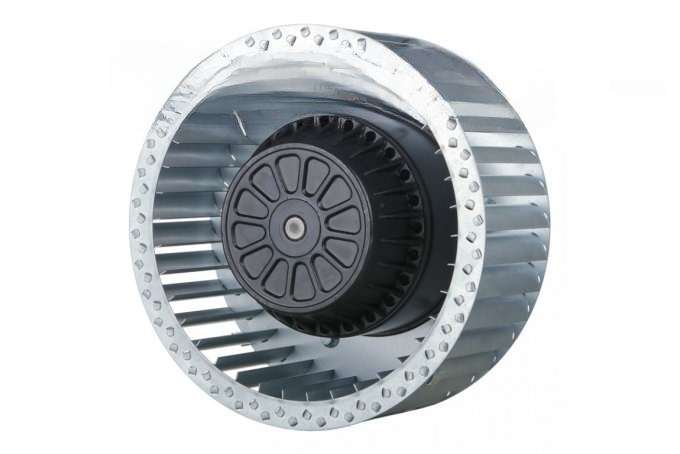

- The radial fan is made of galvanized sheet metal with a forward-curved blade structure.
- Speed control; optional speed controller can be connected.
- External Rotor engine system is used,
- The motor is protected against overheating.
- It is used to clean the ambient air at a maximum of 60 °C.
|
| Usage areas |
- Especially in industrial and commercial areas; It generally offers superior solutions in local cooling applications and heating systems.
- In machine cooling, solid fuel boilers, yacht air conditioners, DC motor cooling, plastic machines, socks machines,
- It is used in cooling electrical panels, laboratories, residences, commercial places, game machines, etc. It is one of our production suitable for use in many areas.
|
| TECHNICAL DATA |
| MEDICINE |
DRS- 120-60 |
DRS 140-60 |
DRS 160-60 |
| Voltage/Volts |
230 |
230 |
230 |
| Frequency/Hz |
50 |
50 |
50 |
| Power/Watt |
90 |
160 |
225 |
| Flow rate-m3/h |
380 |
650 |
750 |
| Revolution/min-1 |
2450 |
2450 |
2450 |
| Current/A |
0.4 |
0.7 |
0.95 |
| Weight/Kg |
2.3 |
2.9 |
3.7 |
|
Note: All dimensions are in mm.
| MODEL |
A. |
B. |
C. |
D |
TO |
F |
ØG |
K |
BE |
M. |
N |
P. |
| DRS-120-20 |
82 |
57 |
one hundred |
68 |
115 |
90 |
Ø6.5 |
120 |
102 |
87 |
193 |
202 |
