CASSETTE FILTER-G3-G4 DUST HOLDER

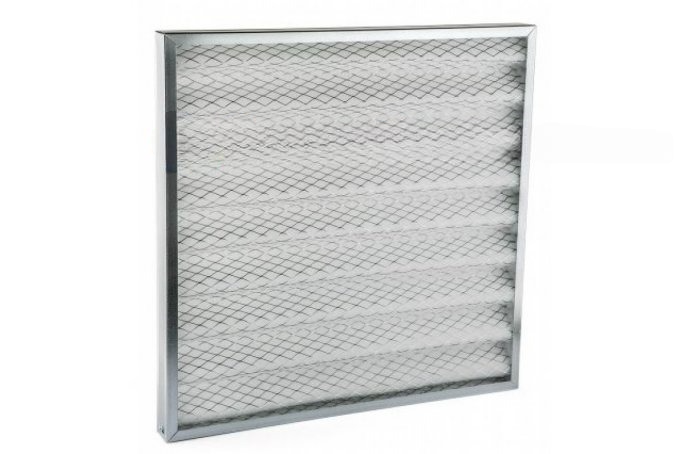

CASSETTE FILTER – It is especially designed to be used as a pre-filter before sensitive filters and to retain dry dust in ventilation systems. Synthetic filter material is supported by cage wire and placed in a metal frame. For low pressure loss and high dust holding capacity, synthetic filter material is pleated and placed in the frame in a zig-zag shape. For low flow applications, plain and replaceable material models are available.
Filter Efficiency Class: G3 (EU3) – G4 (EU4)
| Product Advantages | |
|
APPLICATIONS:
|
|
| Usage areas | |
|
Zik-Zag Metal Framed Cassette Filter Technical Specifications
| Filter Class (EN 779) | G3(EU3) G4(EU4) F5 |
| Frame Material | Electrogalvanized Sheet |
| Filter Media | Synthetic Polyester |
| Max. Pressure Drop | 250Pa |
| Filter change recommendation | 100Pa |
| Operating temperature | 80 Degrees |
| Relative humidity | %one hundred |
Long lifetime and low pressure loss. Washable and replaceable synthetic filter fiber. Polyester and polypropylene based plush fiber filtration materials with high air permeability can be applied. Flat panel or zig-zag structure on both surfaces, which increases the filtration area and high dust holding capacity, can be used.
Areas of Use: They are used as pre-filters in all ventilation and air conditioning plants to capture high capacity coarse and fine dust. They are used in the production areas of hotels, hospitals, public and office buildings, shopping malls and factories.
It can be produced in standard and special sizes from different materials.
| Std. Dimension (mm) | Class | Flow rate (m3/h) | Front Pressure(Pa) | Final Pressure(Pa) |
| 287x287x48 | G4 (EU4) | 850 | 90 | 250 |
| 287x592x48 | G4 (EU4) | 1700 | 90 | 250 |
| 592x592x48 | G4 (EU4) | 3400 | 90 | 250 |
| 287x287x98 | G4 (EU4) | 1050 | 70 | 250 |
| 287x592x98 | G4 (EU4) | 2100 | 70 | 250 |
| 592x592x98 | G4 (EU4) | 4200 | 70 | 250 |
