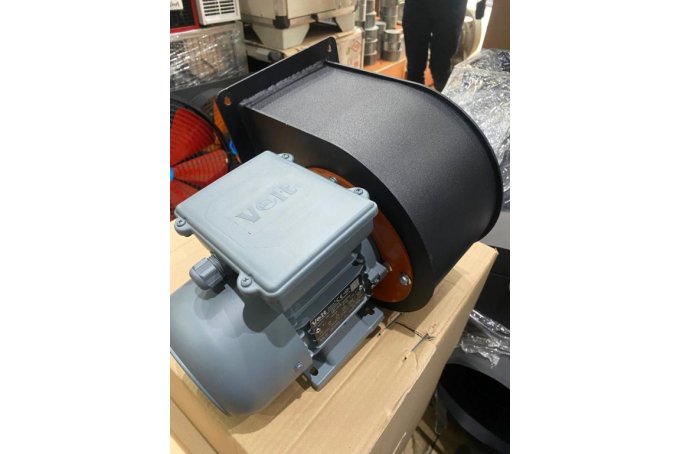

Burner Fan 0.55kw 2.000 m3/h 500 pa
Burner Fan 0.55kw 2.000 m3/h 500 pa - Image 2
Burner Fan 0.55kw 2.000 m3/h 500 pa - Image 3
Burner Fan 0.55kw 2.000 m3/h 500 pa - Image 4

Burner Fan 0.55kw 2.000 m3/h 500 pa

SKU: Tekramnasnaf: FSG SK-T1





$189,39

Description

 They are snails with standard direct coupled external motors, from 700 m³/h to 10,000 m³/h, from 250 Pa to 2600 Pa, with sheet metal bodies, and close-winged, forward-curved propellers. All measurements are made in accordance with TSE standards. It can also be operated with a frequency inverter (speed controller).

Fans produced from DKP or black sheet metal between 2 mm and 5 mm are cut on CNC laser sheet metal processing machines and joined by welding. It is painted with electrostatic powder paint. Propeller balancing is done on electronic balancing machines. It is sent to the quality control department before shipment.

Technical Specifications
flow rate  2.000 m3/h Suction-throw Size: 140mm throw size: 128/98     Dimensions: 260/264/ mm
Transfer  2,850 rpm
Pressure  45mm/SS
See Decibels  36 Dba
Voltage  380 V Three Phase (single phase option is available, there is a price difference)
Motor power 0.55 kw -.0.75 Hp
Product Advantages
  • 700 m³/h to 10,000 m³/h, 250 Pa to 2600 Pa with standard direct coupled external motor
  • They are snails with a sheet metal body and dense wings with forward-curved propellers.
  • All measurements are made in accordance with TSE standards.
  • It can also be operated with a frequency inverter (speed controller).
Usage areas
  • It offers superior solutions, especially in INDUSTRIAL and COMMERCIAL areas, and generally in local cooling applications and heating systems.
  • In cooling of machines, restaurant ovens, plastic machines
  • in resistance heating applications, in carpet washing factories, in boilers; burning solid and liquid fuel
  • In the heat industry to provide secondary air in a controlled manner,
  • In the ventilation of closed environments, in the cooling of direct current motors, in industrial machines of the jewelery sector, in the textile industry,
  • It can serve in many branches of the manufacturing industry in mines and mushroom farms, balloon inflation, marble machines, plastic injection machines.

 DIFFERENT SIZES AVAILABLE STANDARD PRODUCT TYPES TABLE

MODEL PROPELLER DIAMETER (mm) VOLTAGE (VOLT/HZ) MOTOR POWER CURRENT (A) REVOLUTION (rpm) FLOW RATE (m³/h) PRESSURE (Pa) SOUND (dBa)
HP K.W.
FSG SK-M1 140-70 230/50  1/3 0.25 1.60 2850 700 250 27
FSG SK-M2   160-90 230/50  1/2 0.37 2.50 2850 1450 350 33
FSG SK-M3 180-90 230/50  3/4 0.55 3.50 2850 1950 450 37
FSG SK-M4 225-90 230/50 one     0.75 5.00 2850 2450 550 40
FSG SK-M4 225-102 230/50 1.5 1.1 7.00 2850 2900 600 42
FSG SK-M5 250-112 230/50 2 1.5 9.80 2850 3400 700 47
FSG SK-M5 250-118 230/50 3 2.2 13.50 2850 3900 850 52
FSG SK-M6 268-112 230/50 3 2.2 13.50 2850 4400 1200 54
FSG SK-M6 268-118 230/50 4 3 17.70 2850 4900 1500 58
