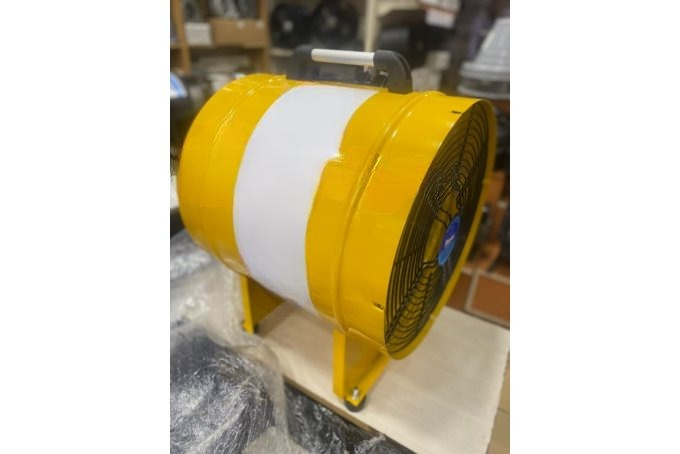

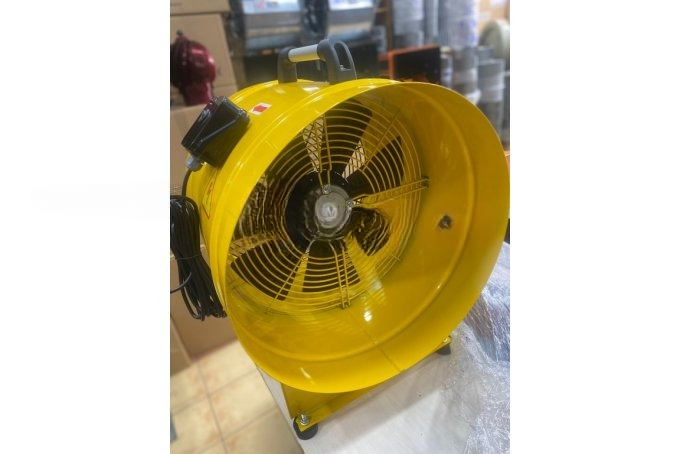

They are easily portable devices. FMOBDTF-TYPE FANS are flame retardant and can be used as absorbers and blowers with their polyurethane hose that is antistatic and resistant to aggressive abrasions and friction.
It is equipped with a Start-Stop engine protection switch and a 3 m supply cable.
STANDARD PRODUCT PRICE IS ONLY THE FAN EXCLUDING THE HOSE – ACCESSORIES SUCH AS HOSE AND HOOD.
EXPROOF FEATURED AND (CERTIFIED MODELS WITH 200°C 2 H HOURS HEAT RESISTANCE)
| Technicial Specifications |
| Motor power |
625 WATTS |
| Engine Speed |
2,800 rpm |
| Flow – Pressure (pa) |
8.500 m3/h – 250 pa |
| Voltage (Volt/Hz) |
230 Volt Single Phase -50 Hz Current: 2.82 (A) |
| Air Outlet Diameter |
50cm |
| Product Advantages |
- Our direct coupled standard sleeve smoke exhaust and pressurization fans from 3500 m³/h to 100,000 m³/h, from 10 mmSS to 50 mmSS, from 30 cm diameter to 125 cm diameter.
- The propeller is produced from GALVANIZED sheet metal, and aluminum bladed propellers that can be adjusted according to need can be used. All measurements are made in accordance with TSE standards. Production is made in larger pressures and diameters upon request.
- It can also be operated with a frequency inverter (speed controller). Upon request, it can be produced to withstand 120 minutes at 200˚C and 120 minutes at 300˚C.
- MATERIAL : Fans produced from galvanized sheet metal between 2 mm and 5 mm or (in large diameters); DKP or black sheet metal are cut on CNC laser sheet metal processing machines and combined by welding.
- The wings are printed in aluminum metal injection. It is painted with electrostatic powder paint. Propeller balancing is done on electronic balancing machines. It is sent to the quality control department before shipment.
|
| Usage areas |
- They are extremely useful and practical devices for ventilation of containers, warehouses, basements, sewers, silos, tents and similar spaces, evacuation of welding smoke, steam, exhaust gas and many similar tasks.
- Electrical panel cooling, UPS systems, deep freezer cooling, welding machine cooling, greenhouse circulation fan and products suitable for use in vital areas.
- In providing the necessary air conditioning for plants in greenhouses; In homogeneous distribution of air in places such as farms and barns; factory, workshop etc. It is used to remove dust, smoke and bad odors from places.
|
VALUE TABLE OF DIFFERENT DIMENSIONS – OPTIONAL PRODUCTION AVAILABLE
| MODEL |
INCOME |
MOTOR POWER |
FLOW |
TRANSFER |
FLOW |
PRESSURE |
| (VOLT/HZ) |
WATT |
(A) |
(d/d) |
(m³/h) |
(Pa) |
| FMOBDTF-300 |
230/50 |
190 |
0.99 |
2800 |
3500 |
250 |
| FMOBDTF-350 |
230/50 |
260 |
0.91 |
2800 |
5000 |
250 |
| FMOBDTF-400 |
230/50 |
420 |
1.90 |
2800 |
6500 |
250 |
| FMOBDTF-450 |
230/50 |
525 |
1.55 |
2800 |
7500 |
250 |
| FMOBDTF-500 |
230/50 |
625 |
2.82 |
2800 |
8500 |
250 |
| FMOBDTF-550 |
230/50 |
190 |
0.98 |
1400 |
5500 |
one hundred |
| FMOBDTFF-600 |
230/50 |
230 |
1.06 |
1400 |
8000 |
one hundred |
