Description
– It can be manufactured as single-jointed or double-jointed in the middle in large sizes.
– It is produced when 1 meter to 6 meter length is required.
– Extension arms over 2 m can move 180° from the mounting point.
| Technical Specifications | |
| Length | 3 Mt – 5-6 Mt Including Console |
| Air Flow | 1.900 m³/h Engine Power: 0.75 kw |
| Flexible Duct | ø160mm POLYURETHANE Engine Speed: 2,800 rpm |
| Heat Resistance | MAX. 80°C Motor Voltage: 380 v (Three Phase) |
| Usage areas

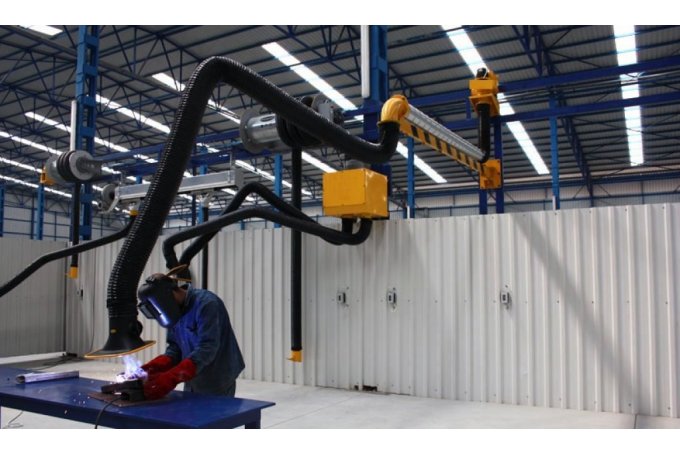

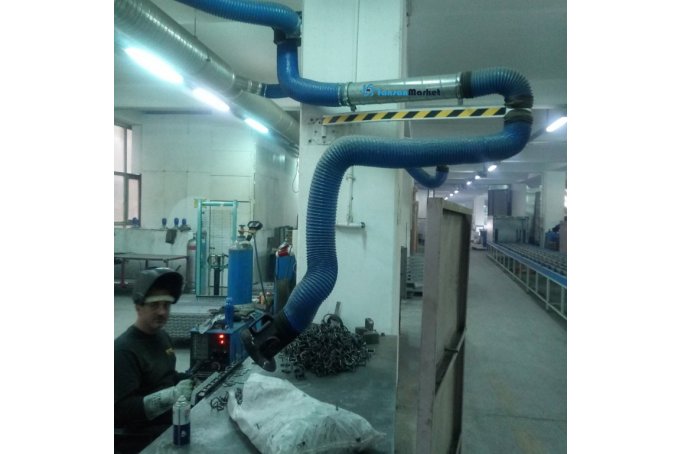

It is a practical smoke extraction system used to absorb and expel smoke, steam, odor and similar gases. They are extremely practical units for welding fume extraction, exhaust smoke extraction, steam extraction, tunnel-pipe ventilation, container ventilation and many similar uses. It is also used for smoke evacuation after fire. Also known as firefighter fan. |
Working Distances
IT IS SUITABLE FOR WORKING BETWEEN 2-3 -5 MT IN ACCORDANCE WITH THE HOSE AND ARM DISTANCE.
It moves and remains 100% fixed in the desired position. It is long-lasting thanks to its Gas System and externally supported carrier technology. The hose is made of polyurethane material that is resistant to friction and sparks. It captures the dust, smoke and gas released in industrial facilities from their source.

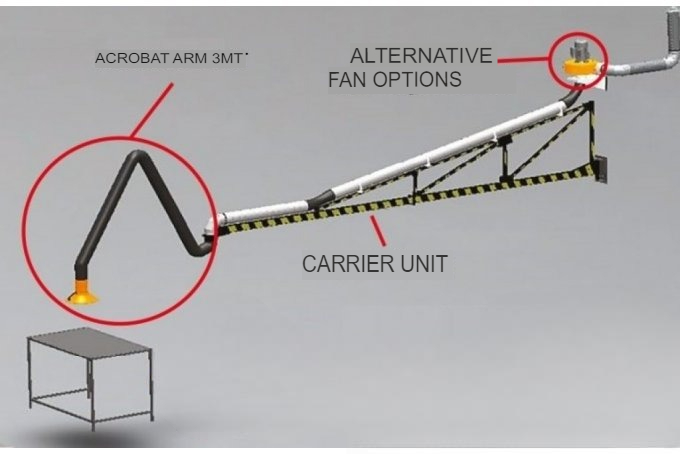

- Wall Connection Console: Acrobat arm provides connection to the wall, column or steel construction.
- 360 rotating flash: Allows the acrobat arm to rotate 360 degrees around its own axis between the acrobat arm and the wall console.

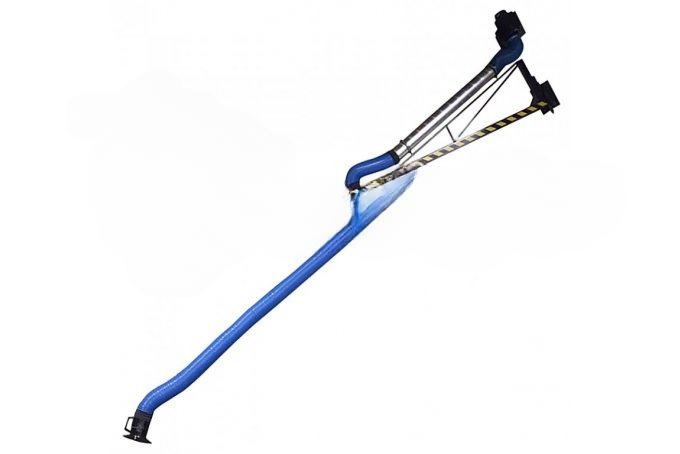

- Mechanical Arm and Hose: The mechanism, which allows breaking from three different points except the rotating flanges, is covered with an anti-static flame retardant Strong-L polyurethane hose.
- Suction hood: It is made of lightweight material and produces point vacuum thanks to the suction angles calculated by us. It has the ability to rotate 360 degrees around its own axis. Volumetric air adjustment damper is available

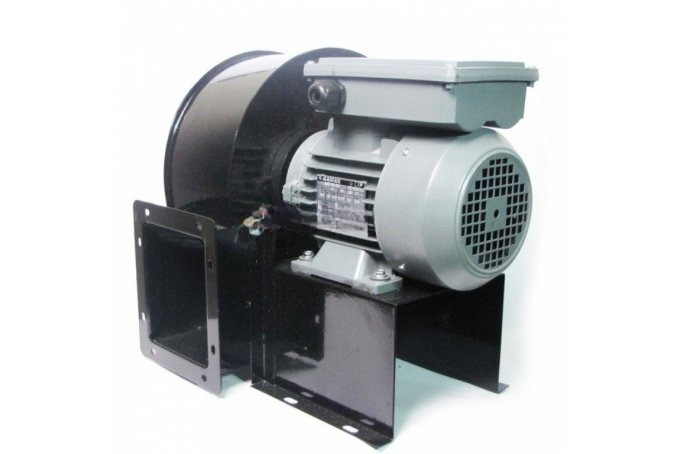

- Acrobat arm Aspirators: Capacity is determined according to acrobat arm lengths and usage areas. (Aluminum casting body or sheet metal body can be preferred.)
