IT IS OVEN PAINTED – FREQUENT AND SPACIOUS FLASH OPTIONS – FAN DIRECTION PREFERENCE – SUITABLE FOR OILY ENVIRONMENTS – DOMESTIC PRODUCTION
| Technical Specifications |
| Transfer |
2,800 rpm |
| Pressure |
130mm/s |
| Flow |
950 m3/h |
| Voltage |
380V-230V |

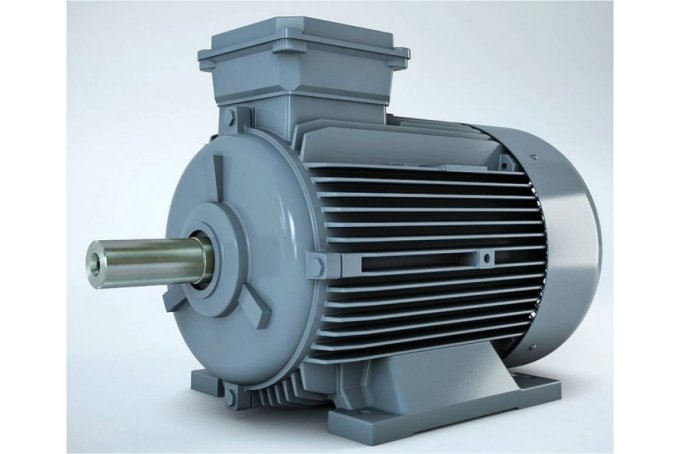

| Motor power |
0.37 Kw |
| Product Advantages |

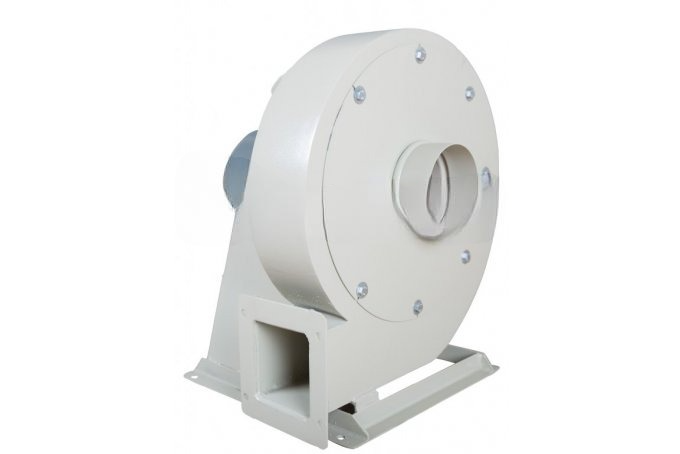

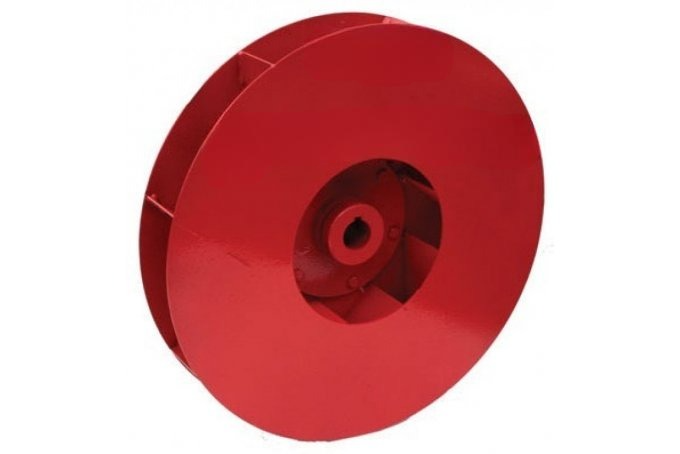

- These fans fall into the backward curved (BI-BC) fan group. The blades of this type of fans are inclined backwards according to the direction of rotation of the propeller. The performance of this fan is characterized by its high efficiency, rigid construction and suitability for medium and high static pressures.
|
| Usage areas |
- These fans are used to suck dusty air containing particles, saw dust, wood and metal shavings.
- It is used for pneumatic conveying in cement, ceramics, feed factories, textile, chemical industries and in all applications where harmful air must be transported from one place to another.
|
| MODEL |
A. |
B. |
C. |
D |
TO |
H |
| OB R-2- 0.37KW-0.50HP |
495 |
471 |
380 |
120 |
391 |
one hundred |
