4MP 2 Camera Solar PTZ 10X Optical Zoom 4G SIM Card Camera AV-S422X

Description

origin: CN (origin)
Place of Origin: Guangdong, China
Model Number: LS-WS20L-20X
Warranty: 1 year
Sensor: CMOS
Style: Floodlight Camera, solar camera, PTZ camera, Battery camera
Video Compression Format: H.265
Data Storage Options: Cloud, NVR, Micro SD card, Full HD, Memory Card
Application: Indoor, Outdoor
Customized support: Online technical support, Customized logo, OEM, ODM
Video compression: H.265/MJPEGI
Media Processor: Ingenic T31Z
Resolution: 4MP+4MP Dual HD CMOS Sensors
Alarm Trigger: Human motion alarm
Battery: 20000mAh(21700-5000mah*4PCS)
Audio: Two way voice intercom
Lens: Dual-lens solar camera
Storage: Max 128g TF memory card
Mobile app: Ubox
IR LED: 4pcs IR array+8pcs IR array

Product Description

Key features — Ultra-low power PTZ battery camera

1. 6MP dual lens 4G solar battery floodlight PTZ camera

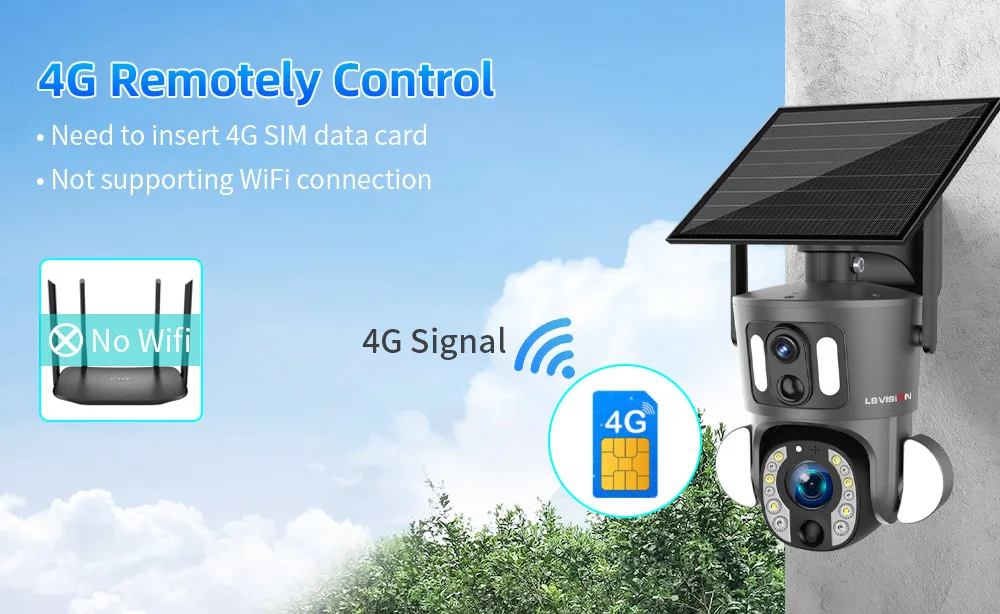

2. Built-in 4G module, different modules in different countries
3. Pan & Tilt: Pan 355 degrees and Tilt 100 degrees
4. 9-watt solar panel with 3m extension cable, built-in 15600mAh batteries
5. Two-way voice intercom
6. Cloud storage and TF card storage maximum 128G (without TF card)
7. 4G network remote monitoring/playback via APP (UBox)
8. Supports Bluetooth quick network configuration
9. Dual PIR + Ai humanoid detection alarm and video recording
10. Arbitrary arming time can be set
11.2.8mm wide-angle lens + 5-50mm 20x optical zoom PTZ lens, see clearly from far and near

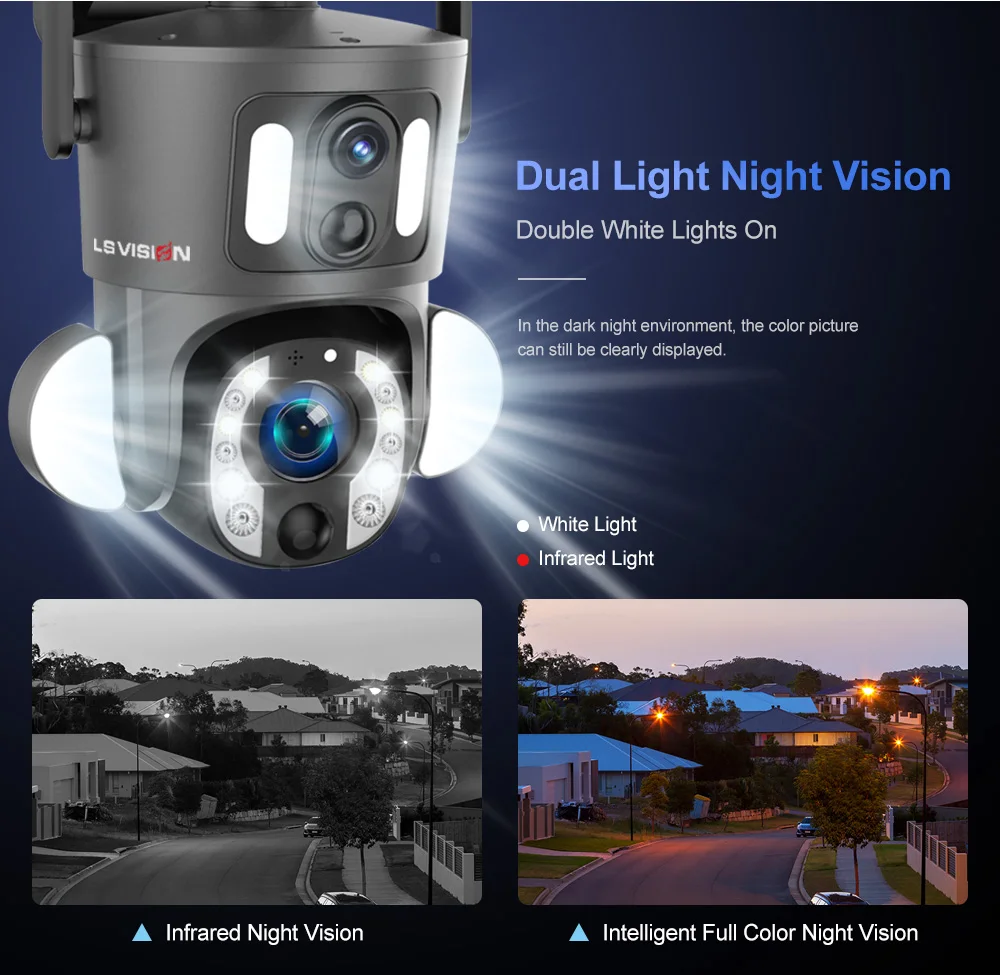

12. Built-in infrared light + white light, night vision full color or infrared mode optional, IR distance 40 meters
13. Support dual video linkage positioning and humanoid automatic tracking
14. Waterproof grade IP66

Detailed images

Motion detection Alarm notification

* When the video camera detects motion, it will send a motion detection notification to your mobile phone.

* Video surveillance can be activated by humans.

* If the LED is on, when the security camera detects motion, the floodlight (spotlight) will turn on.

• Using 6MP pan-tilt camera and 6MP wide-angle camera, 9w solar panel built-in 4 15600mAh duplex batteries, continuous work for 36 hours
• Dual-screen preview, SD card cloud storage two storage methods, optional 10x spherical lens, dual fill light, full-color night vision and starlight increase night vision
• Two-way audio function, real-time recording, real-time call
• Multiple connection methods: Wifi version, 4G wireless version (no backup network port)
• High-sensitivity PIR sensor configuration, 0.25 seconds to trigger activation of shooting and video push APP
• Wall and ceiling mounting options for a variety of scenarios
• IP66 industrial grade dustproof and waterproof, can adapt to a variety of outdoor harsh weather conditions.

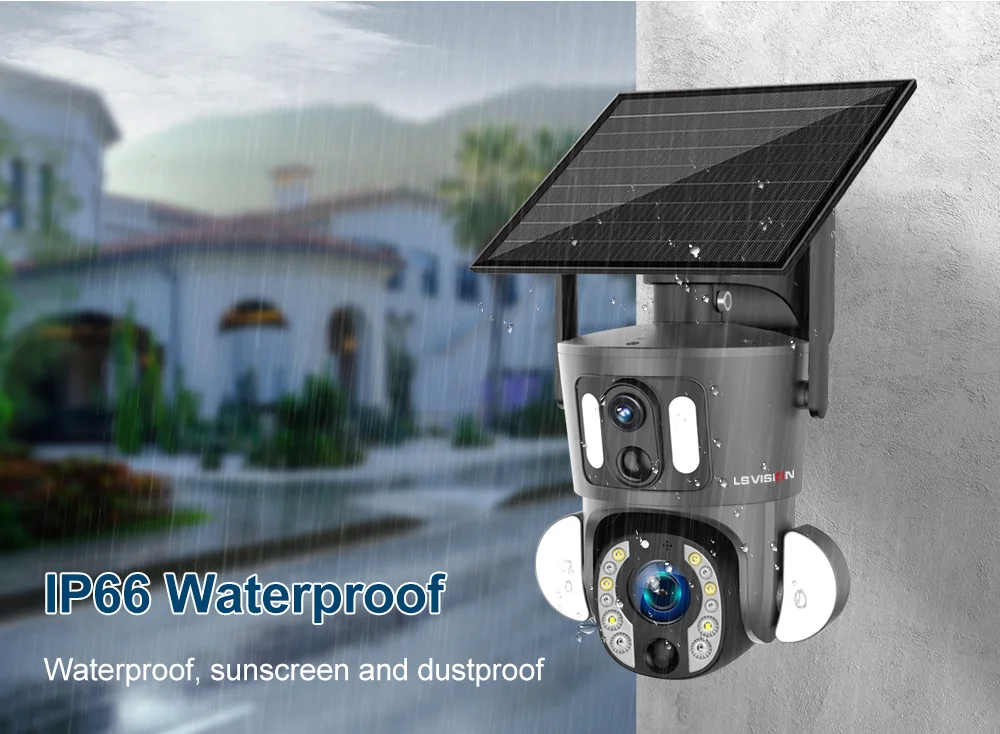

Waterproof IP66 solar outdoor camera

* The security outdoor camera is equipped with an IP66 rated weatherproof housing, designed
to operate the PTZ security camera even in extreme weather conditions.

* Surveillance camera shell is made of high quality plastic material, which is waterproof

* IP66 design shell can prevent dust and splash water (make sure all covers are used in the correct position)

Resolution	6MP dual HD CMOS sensors
IR distance	5-40M
White light	Can illuminate an area of 50 square meters
Wide Angle Lens	2.5mm/120 degree wide angle lens (pan 180°/ Tilt 15° manually adjust)
PTZ lens	6mm lens/2.8-12mm x optical zoom/5-50 20x optical zoom optional
PTZ features	Pan:355°/Tilt:90°,30°/s
SD card storage	Support Max 128G
Cloud storage	Support Max 30 days storage
Intelligent analysis	2 top, support human, animal and vehicle identification
Audio input	Built-in 38db microphone
Audio output	83w 3w
Recording mode	All day recording, Alarm recording
WiFi module	4G version: LTD FDD WCDMA WiFi version: 2.4GHz 802.11b/g/n
System configuration	Software version IOS7.1, Android 4.0 and above
Material	Plastic with metallic paint
Battery	20000mAh(21700-5000mah * 4pcs)
SOLAR PANEL	6W ETFE
Operating temperature	-15℃-55℃
Power adapter	5V2A
Weight/Dimension	Camera: 280175175mm GW: 1800g NW:1500g
