Description

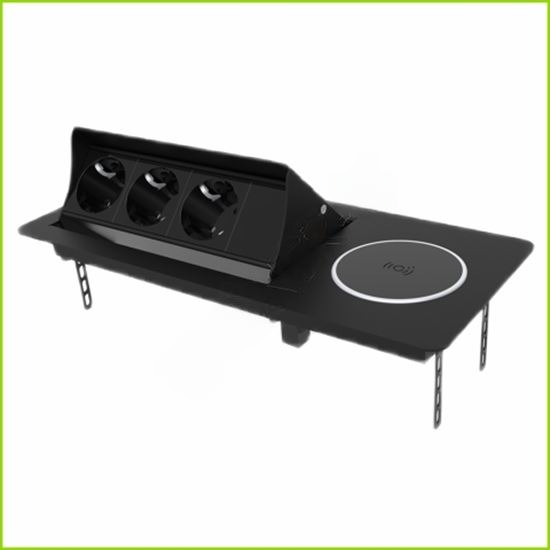

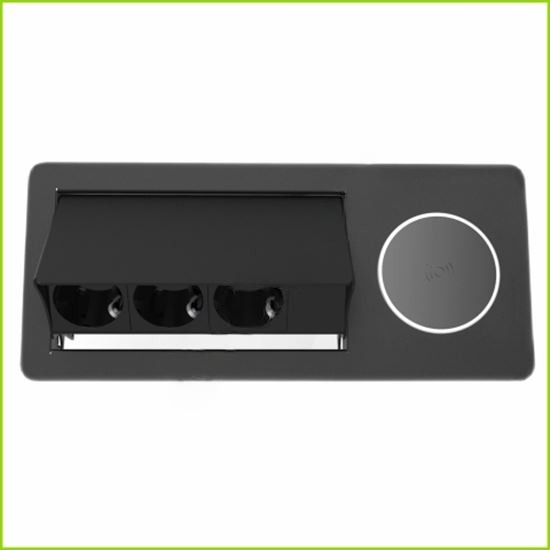

3800 Series Wireless Charging Desktop Metal Socket Case
- With the 15 W fast wireless charging feature, you can charge your phone without the need for an interconnection element.
- There is a blind cover inside the product. Since the product works by pressing and opening, you should attach the blind cover to the rightmost module during installation.
- The product is sold empty. You can design the content as you wish.
- When choosing a module for the product, pay attention to the following module dimensions.
- Mains Socket ……..…… 2 Modules
- UPS Socket ………………… 2 Modules
- Cat-3 Connector ……. 1 Module
- Cat-6 Connector ……. 1 Module
- HDMI Connector ….. 1 Module
- VGA Connector ……… 1 Module
- USB Connector ……… 1 Module
- USB Dual Connector … 1 Module
- Thin Blind Cover ………. 1 Module
- Thick Blind Cover ………… 2 Modules
- You can review module examples below
|
NUMBER OF MODULES |
Width |
Depth |
Height |
|
6 Modules |
301mm |
132mm |
72mm |
- to access the technical drawing
6 Module Product Example
